Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Specifications
Brand Name :
BAITONG
Model Number :
BT-0052
Certification :
ISO-9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 piece per day
Delivery Time :
5-8 days
Packaging Details :
wooden box
Name :
Sintered Wire Mesh Filter
other name :
Stainless Steel 304 10um For Oil Filter With flange Sintered Wire Mesh Filter
Material :
stainless steel 304
Color :
silver
Layer :
5/3/2
Application :
Filters, Screen
Hole :
1-100um
Feature :
High filtration accuracy
Customization :
picture,specifaction,drawing
International standard :
ISO9001：2000
Technical :
sintered
Description
Stainless Steel 304 10um For Oil Filter With flange Sintered Wire Mesh Filter

Sintered mesh filter information:

Sintered stainless steel mesh filter element is an ideal filter element for filtration, washing and drying.The main filter material is made of multi-layer stainless steel sintered net, which is precisely cut by laser cutting machine.

Sintered mesh filter Technical Data Sheet:

Product Name Stainless Steel 316 15um For Oil Filter Sintered Wire Mesh Filter
Application Water filter/Air filter/oil filter
Material 304 stainless steel
Color Silver

No. nominal accuracy actual accuracy permeability pressure(pa)
(μ m) (μ m) (L/min·cm·pa)
sw1 1 6-7 4500
sw2 2 8-9 (1-6) ×10 4300
sw5 5 11-13 (1-6) ×10 3000
sw10 10 16-18 (5-10) ×10 2800
sw15 15 24-26 (5-10) ×10 2000
sw20 20 28-32 (1-5) ×10 1800
sw25 25 34-36 (1-5) ×10 1500
sw30 30 40-45 (1-5) ×10 1230
sw40 40 50-55 (5-10) ×10 1020
sw50 50 71-80 (5-10) ×10 860
sw70 70 86-95 (1-5) ×10 690
sw100 100 110-120 ≥5 ×10 630


Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter

Sintered mesh filter Advantages:

All stainless steel structure, corrosion resistance, high temperature resistance;No leakage, no medium off;Sintered mesh filter layer, can withstand high reverse flow;Repeatedly clean;1-200 microns accuracy;ISO 9000 quality system certification;
High flow;High porosity, good permeability, very low pressure drop;High precision;Excellent mechanical strength, high pressure resistance up to 200Kg;Easy to clean, pulse backwash;Good processing performance, folding, welding, bonding;Flexibility of Design

Sintered mesh filter Application:

1. Precise filtration of various hydraulic oils and lubricants in the mechanical industry;

2. Filtration and purification of various polymer melts in chemical fiber thin film industry, filtration of various high-temperature and corrosive liquids in petrochemical industry, filtration, washing and drying of materials in pharmaceutical industry;

3. Application of gas homogenization in powder industry, fluidized plate in iron and steel industry;

4. Dividers in explosion-proof electrical appliances, etc.

5.Used for high pressure backwash oil filter

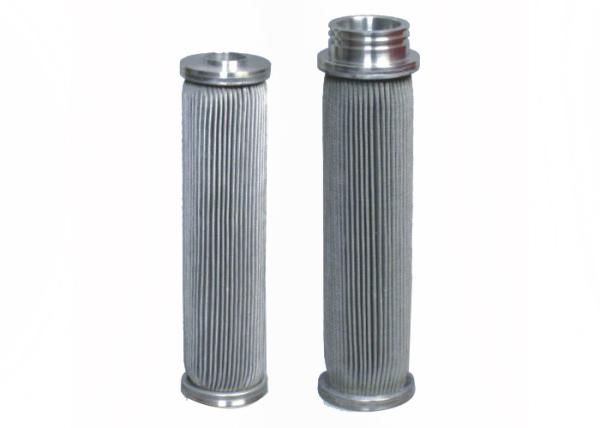

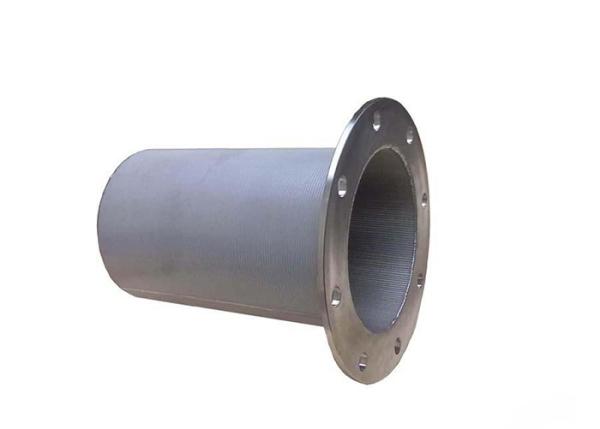

Sintered mesh filter show:

Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter

Packing&Shipping:

Silver Stainless Steel 304 10um Sintered Mesh Filter For Oil FilterSilver Stainless Steel 304 10um Sintered Mesh Filter For Oil Filter
