V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
Specifications
Brand Name :
BAITONG
Model Number :
Wedge Wire Screen
Certification :
ISO
Place of Origin :
Hebei, CHina
MOQ :
1 pcs
Price :
USD 50-200
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 pcs per month, sample is free
Delivery Time :
7 days
Packaging Details :
Wood box and pallet
Material :
SS201, SS 304, SS316,
Slot :
0.5mm,0.8mm
Diameter :
4"-12"
Application :
Water Well Screen
Screen End :
Plain end, Male/Female threaded
Length :
10mm-6000mm
Description

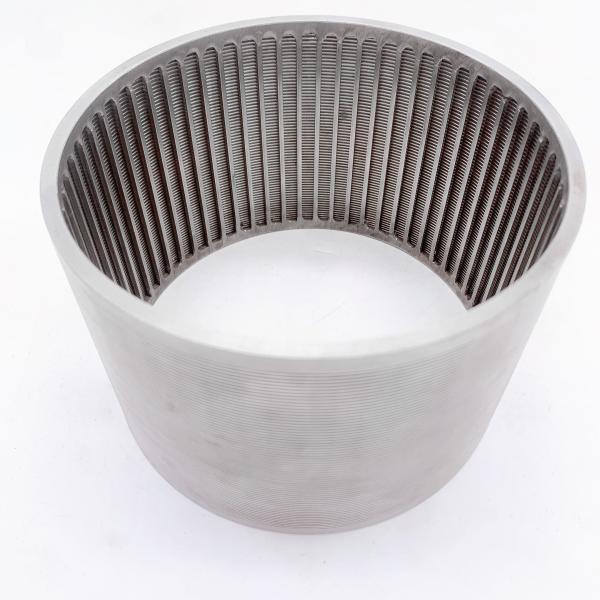

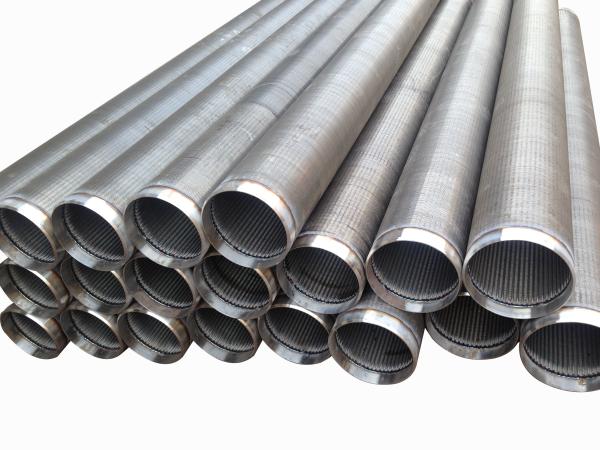

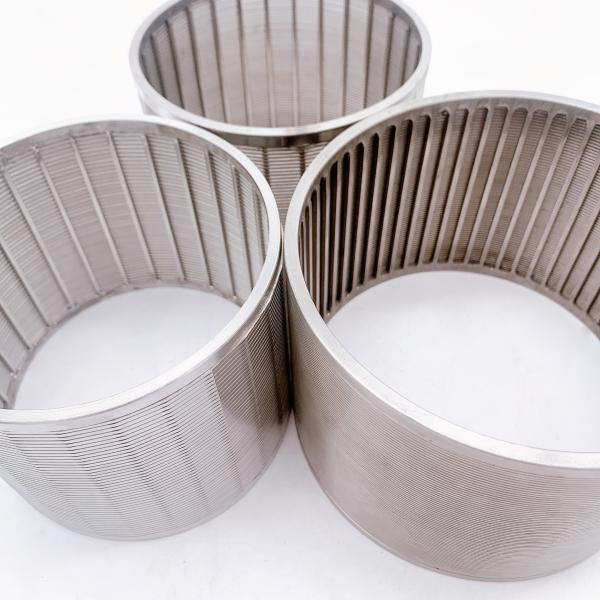

V Shape SS304 Slot 0.5mm Wedge Wire Screen for Water Well Screen

Water Well Screen Tube Introduction

The stainless steel slot wedge wire water well screen is also made of rods and wire.

The rod can be round wire, trapezoid wire, etc. Media Screen has a strong structure and high open area, as well as accurate slot dimension.

At the same time, it is heat-resisting, anti-corrosive, mechanically sound, long lasting, safe and reliable and so on. It can be used in many kinds of medium filtering.

Water Well Screen Material

Stainless Steel Wire (201,302,304,304L,316,316L)

Specifications of Stainless Steel Slot Wedge Wire Water Well Screens

1. OD/Diameter: 28-600mm/1-24inch

2. Material/Grade: 201 304 304L 316 316L Q235/stainless or mild steel/carbon steel,201/304(L)/316(L)/carbon steel

3. Slot/Slot size: 0.05---1.5mm/0.05 up/0.05 mm (min)

4. Connection type/Ends: LTC, STC, BTC threaded or welded/STC threaded/welded ring

5. Unit length: 3m&6m (up to 6 meters/6000mm (max)/ 2.9m or 5.8m)/5.8-6meters

6. Wire/Wrap size/Wire Dimensions: 1.5*2, 1.8*2.4, 2*3, 2.2*3.5, 3*5, 3.2*6, 3.5*6.9,

7. Support rod/Rod size: 2.6, 2.8, 3.0, 3.8, 4.2, 5, 6.0.

8. Surface treatment: spray paint or galvanized External coating: mill varnish

V Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well ScreenV Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well ScreenV Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well ScreenV Shaped Ss304 Slot 0.5mm Johnson screen Wedge Wire Mesh For Water Well Screen
