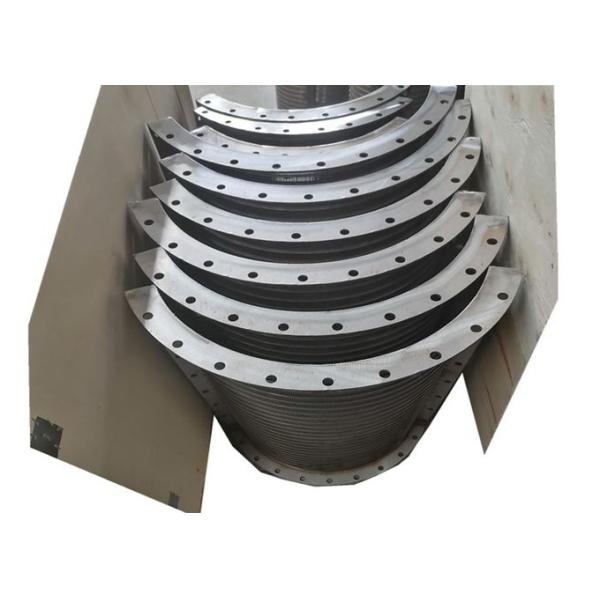

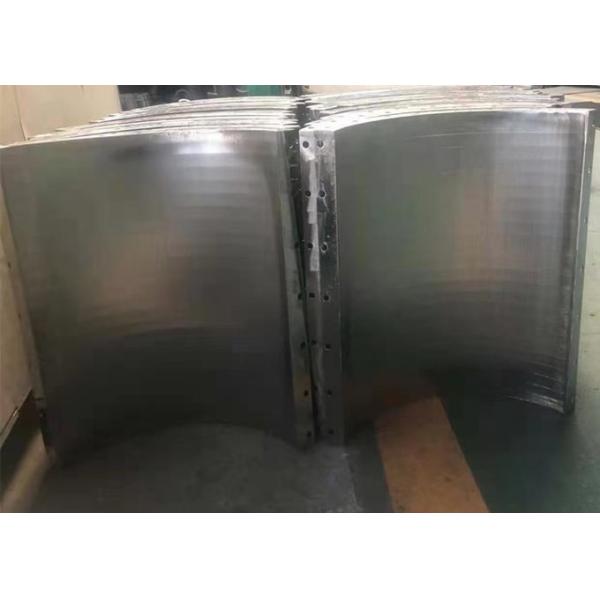

Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Specifications
Brand Name :
BaiTong
Model Number :
Static Sieve Bend Wedge Wire Screen
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Static Sieve Bend Wedge Wire Screen
Diameter :
1500mm max
Usages :
Coffee Maker Parts, Water Filter Parts, Pure Water Treatment System,Pre-Filters of water filter system, Household Pre-Filtration
Slot :
0.02mm-5.0mm Smaller on available on customer's request
Color :
stainless steel color
Material :
Stainless steel 304,316,304L,316L,etc.
Length :
up to 6000mm
Angle :
90°,120°,140°,150°,160° etc.
Function :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
After-sales service provided :
Online support, Video technical support
Description

For Water and Effluent Treatment Static Sieve Bend Wedge Wire Screen

Wedge Wire Screen Description

Static Sieve Bend Wedge Wire Screen also called Curved sieves,

It is divided into two types: pressure curved sieves and gravity curved sieves.

Processing principle and structure:

The pressure curved screen is an efficient screen that relies on pressure wet material to screen.

It consists of a screen surface, a screen box, a feeding device and an outlet.

The screen surface is the key component of the pressure curved screen.

It is assembled by stainless steel sieve-shaped sieve bars.

During operation, the wet material is sprayed from the nozzle under the pressure of 0.2-0.4Mpa.

Triangular sieve wedge strips form a knife edge to scrape the material into a thin layer, so that the water

and fine materials are evenly dispersed.

The so-called "scraping" effect is to make the material easy to classify, and the entire screen surface is

self-cleaning.

The screened material is discharged from the slag outlet, and the screened material enters the slurry outlet.

Wedge Wire Screen Performance Parameters:

1. The arc angle of the screen surface: 120° or selected arc

2. Screen width: 50um, 75um, 100um, 150um, 200um

3. Material handling capacity: 34~46m3/h4, feeding pressure: 0.2~0.4MPa

5. Screen width: 585mm, 710mm, 825mm

6.The arc radius of the screen surface: 762mm

7. The screen surface can be used in both directions and has a long service life.

Name Static Sieve Bend Wedge Wire Screen
Colour

Stainless Steel Silver color or can be customized accroding to

Customer's specific request
Wedge Wire 0.5x1.5, 0.75x1.5,1x2,1.5x2.5,2x3,2x4,3x5,etc.
Support Rod 1.5x2.5,2x3,3x5,4x7,5x8,etc,
Material Stainless steel 304 304L 316 316L or as customer's request
Frame No Frame or "L" Type frame, Ordinary Frame,5x10mm frame,etc. Customized is available

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Wedge Wire Screen Features:

1.Reduced equipment and installation costs

2.Low maintenance costs

3.Better flow rate and finer fiber removal

4.Wide range of application

5.Longer screen life

6.Slot sizes range from 25um to 20mm

7.Made with 300series stainless steel

Wedge Wire Screen Factors affecting screening efficiency:

1. The size of the feeding pressure.

The feed pressure should be 0.2~0.4MPa. The higher the pressure, the higher the screening efficiency,

and the lower the pressure, the lower the screening efficiency.

2. The arc surface of the nozzle and the sieve should be tangent. If the installation accuracy is too poor,

it will not be possible to produce the cutting effect, so the screen surface will not be able to screen the

material, or the movement of the material is blocked and the direction of movement is changed.

At this time, the screen surface will also lose the function of screening the material.

3. The effect of the fine grinding process before the sieve:

it cannot be ground too fine, otherwise the ground slag particles will enter the starch milk together with

the starch granules, which will increase the slag content in the starch milk.

Wedge Wire Screen Packing&details:
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
Water And Effluent Treatment Static 304L Sieve Bend Profile Wire Screen
