100um Static Sieve Manual Bar Wedge Wire Filter Screen
100um Static Sieve Manual Bar Wedge Wire Filter Screen
100um Static Sieve Manual Bar Wedge Wire Filter Screen
100um Static Sieve Manual Bar Wedge Wire Filter Screen
Specifications
Brand Name :
BaiTong
Model Number :
Sieve Bend Wedge Wire Screen
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
1000 square meter per day
Delivery Time :
5-25days
Packaging Details :
Wooden Box or Pallets.
Product name :
Static Sieve Manual Bar Screen
Different Names :
Screw Press Screens,Pressure Curved Bend Screen,Sieve Bend Screen
Usages :
Coffee Maker Parts, Water Filter Parts, Pure Water Treatment System,Pre-Filters of water filter system, Household Pre-Filtration
filtering :
0.05 mm , 0.08 mm , 0.1 mm , 0.15 mm, 0.2 mm, 0.25 mm,0.3 mm.....etc
Color :
stainless steel color
Material :
stainless steel 201,304,316,etc.
Length :
6000mm Max.
Slot Size :
min: 0.02mm
Function :
pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water treatment
After-sales service provided :
Online support, Video technical support
Description

100 Um For Pump Station Waste Water Treatment Static Sieve Manual Bar Screen

Static Sieve Manual Bar Screen Features:

► Flat surface.

►Excellent filtering performance.

►Accurate distance between supporting profile.

►Welded production process for solid and strong structure.

► Good mechanical properties.

►High strength.

► High load capacity.

►Corrosion and rust resistance.

►Temperature resistance.

►Chemical stability.

Static Sieve Manual Bar Screen Description

Static Sieve Manual Bar Screen is ideal for sizing and dewatering applications to remove solids from liquids

or in solid/solid separation for dry feed situations.

When the filtering materials flows against the sieve screens, Sieve bend screens can be manufactured into

a variety of width, arc length and aperture to suit the flow rate and material sizing being separated.

The feed materials are directed vertically and tangentially over the full width of the upper screen surface,

then the material flows down the concave surface at right angles to the opening between wedge profiled wires.

Wedge wire sieve bend screen has continuous slots, which supplies large open area and efficient filtering

performance. Curved surface structure supplies higher flow rate, greater capacity and better filtering than

wedge wire screen flat panels.

Static Sieve Manual Bar Screen Parameters:

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
1.Material: 304 316 316L stainless steel wedge wire
2.Slot: 0.2mm-5mm
3.Profile wire size: 1x2mm, 1.5x2.5mm, 2x3mm, 3x4mm etc
4.Support bar size: 2x3mm, 3x4mm, 3x5mm etc
5.If you have drawing, please send us.

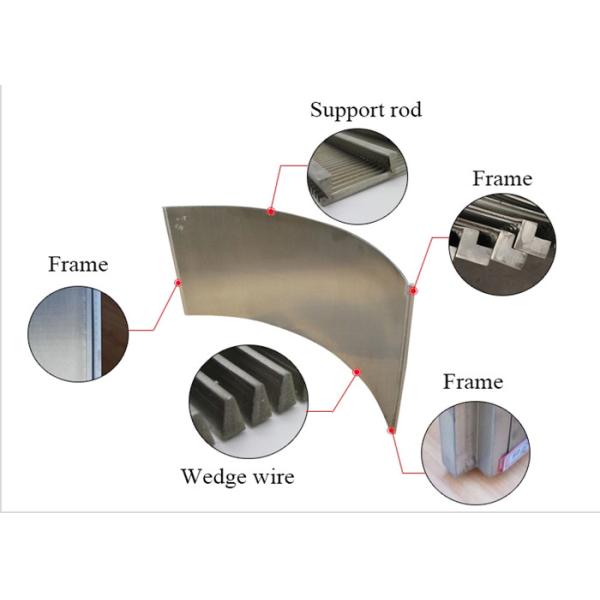

Name Static Sieve Bend Wedge Wire Screen
Colour

Stainless Steel Silver color or can be customized accroding to

Customer's specific request
Wedge Wire 0.5x1.5, 0.75x1.5,1x2,1.5x2.5,2x3,2x4,3x5,etc.
Support Rod 1.5x2.5,2x3,3x5,4x7,5x8,etc,
Material Stainless steel 304 304L 316 316L or as customer's request
Frame No Frame or "L" Type frame, Ordinary Frame,5x10mm frame,etc. Customized is available
Arc height 10mm,15mm,20mm,50mm or depend on you size of screen panel.

Static Sieve Manual Bar Screen Uses:

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and

other industries.

Screening liquids, powders and other materials. Petroleum, chemical, metallurgy, mining,

pharmaceutical purification, Drilling fluid purification.

Static Sieve Manual Bar Screen Packing&details:
100um Static Sieve Manual Bar Wedge Wire Filter Screen
100um Static Sieve Manual Bar Wedge Wire Filter Screen
