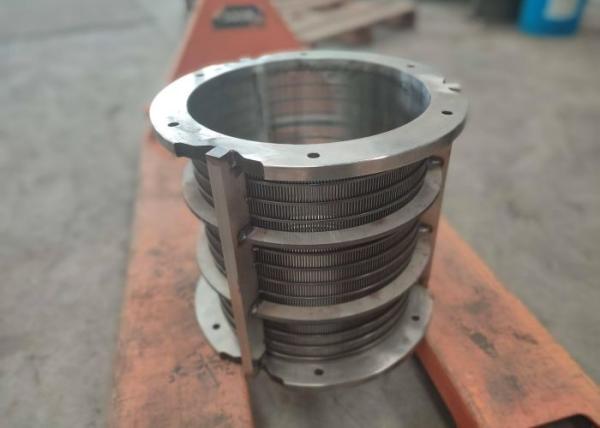

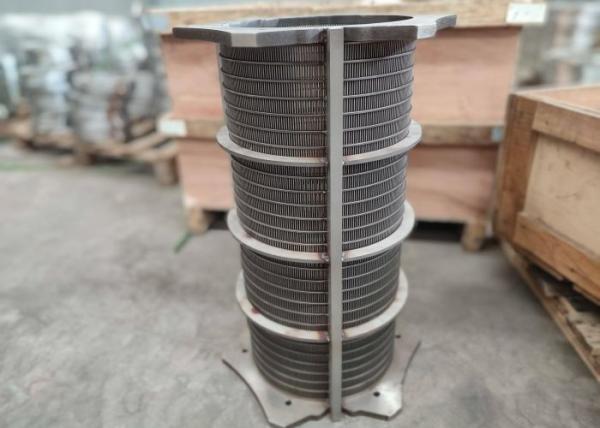

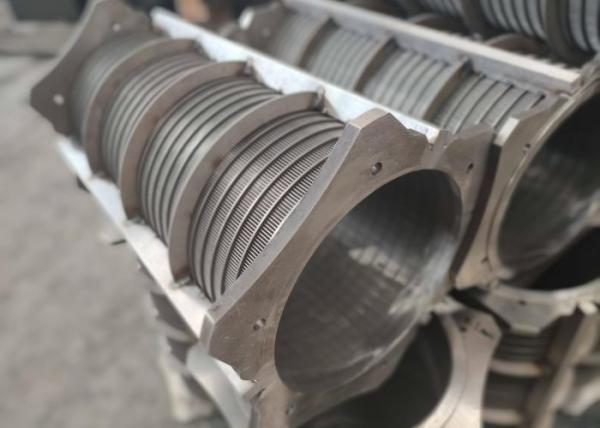

Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Specification:

Min slot: 0.05mm.

Filter: From outside to inside.

Styles of connection: By welding or by threaded male/female coupling.

Standard length: 1m - 5.85m.

Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Features:

♦V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow

the particles that are just barely smaller than the width of the slot pass. In other shapes of openings,

these particles would get caught in the screen and clog it.

♦Continuous Slots: The special design gives continuous slot opening across the periphery and length of

screen.

♦Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter

is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more

water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

♦Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available

down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area.

This gives better sand control and reduced pump maintenance and longer tube well life.

♦Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces

the power required to pump same quantity of water. Power saving of around 20-25% is observed.

Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Advantage:

When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open

area due to their continuous slot openings. The benefits of which will:
. Reduce energy consumption and increase water flow.

. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.
