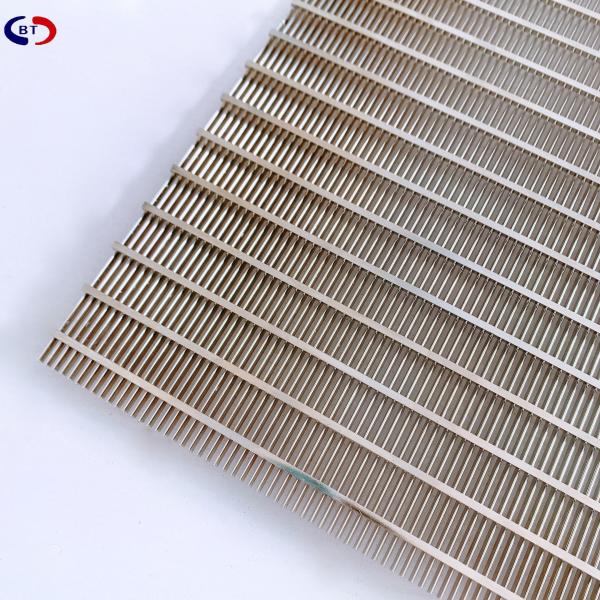

Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Specifications
Brand Name :
Baitong
Model Number :
Jonson Wedge Wire Screen
Certification :
ISO
Place of Origin :
Anping, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 square meter per day
Delivery Time :
5-25 days
Packaging Details :
Wooden Box or Pallets.
Material :
SS304 or SS316
Slot Size :
0.05-100MM or Customized
Screen End :
Plain, Bend
Diameter :
29-1200MM
Description

V-Shaped SS304 Material Koi Pond Wedge Wire Screen


Wedge Wire Screen Introduction

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.

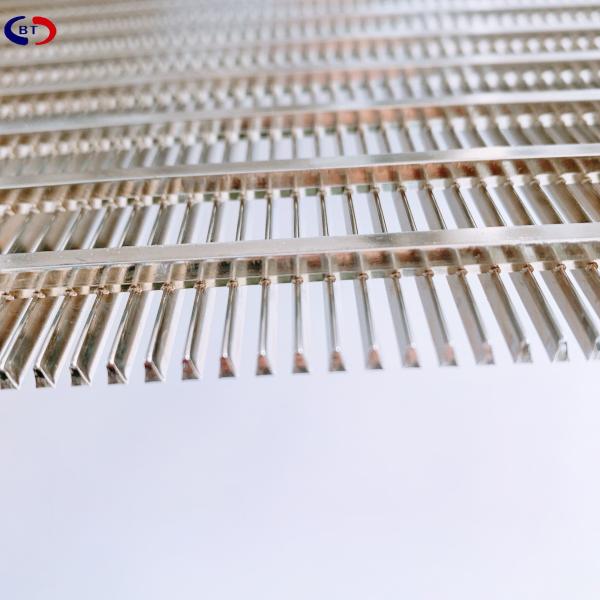

It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles.
The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

Wedge Wire Screen Description

Wedge Wire Screen is a welded steel structure, mainly used for filtration, separation and retention media.
1.Material: 304 316 316L stainless steel wedge wire
2.Slot: 0.2mm-5mm
3.Profile wire size: 1x2mm, 1.5x2.5mm, 2x3mm, 3x4mm etc
4.Support bar size: 2x3mm, 3x4mm, 3x5mm etc
5.If you have drawing, please send us.

Wedge Wire Screen For Filtering And Grain Drying Filter details:

mine screen mesh industry newly developed products,which features easy to leakage,

wear and corrosion resistance. Acid, alkali, high temperature,pulling force and wearability.

Name V-Shaped SS304 Material Koi Pond Wedge Wire Screen
Length Range up to 6000mm
Width Range up to 6000mm
Slot Range 20 um to 3000 um (Tolerance:+-5um)
Other Shapes Can cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire 0.5x1.5, 0.75x1.5, 1x2, 1.5x2, 2x3, 2x4, 3x5.
Support wire

1.5x2.5, 2x3, 1.8x2.5, 2x4,3x5, 3x6,3x10,4x7
Material SS304, SS304L, SS316, SS316L, SS321 or as customer's request


Wedge Wire Screen Function:

Wedge wire screen functions as support grid, sieve bends, baskets, nozzles, lateral assemblies,
resin traps and sand screens to be used in industrial applications, including gas, oil, chemicals,
petrochemical, drilling, mining, food or water processing and paper production.

Wedge Wire Screen Products:

Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Wedge Wire Screen Application:

Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
Wedge Wire Screen Packing&Loading:

Ss304 Material V Shaped Wedge Wire Filter Koi Pond Sieve Bend
