Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack
Specifications
Brand Name :
FUCHUAN
Model Number :
FC-90+45-6
Certification :
ISO9001 2008
Place of Origin :
China
MOQ :
1set
Price :
discussion
Payment Terms :
T/T, L/C
Supply Ability :
30sets/month
Delivery Time :
45days
Packaging Details :
wooden packing
machine color :
sky blue or apple green
style :
automatic
fit for bobbin :
diameter630/800
Lifting type :
electric hydraulic lifting
Power :
5.5KW speed reduction motor
Max speed :
400m/min
screw dia :
90mm
screw ratio :
25:1
control type :
computer control or knob control
Description

FC-90+45 High Speed Extrusion Line

Quick detail :

Application: for PE,PVC,low-smoking non-halogen and other material of wire insulation and sheathing line

Characteristics:

1. Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm

outlet diameter after sheathing: φ8.0mm~φ30.0mm

2. Wire Speed: 80m/min

3. Machine centre height: 1000mm

4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.

5. Machine color:

6. Machine Body: Sky Blue Control Box: Computer White (RAL7035)

Safe color:Yellow(RAL1021)

7. Detail construction of machines:

Components

Name unit Note
1.∮1600 Big Shaft Magnetic Pay-Off Machine Set Fuchuan 630mm-800mm-1000mm
2. 800KG Caterpillar Set Fuchuan made
3. Wire straightening device Set Fuchuan made
4.∮90mm main Extruder (pressure sensor included) Set Contain PVC. TPEscrew 1 piece-made in Zhejiang
5.low-smoking non halogen screw rod set
6.X9 adjustable pcs ShangHai
7. 200KG Hopper & Dryer set Made in Taiwan
8. Vacuum intake set Made in Taiwan
9. 2.5 meters movable water cooling tank set Fuchuan made for cooling
10.water blower set
11.jet-spraine machine set Cuostomer provide
12. 2050 Diameter measure device Set ShangHai on-line
13. Spark Tester Set ShangHai on-line
14. High Speed Printing machine Set Fuchuan made

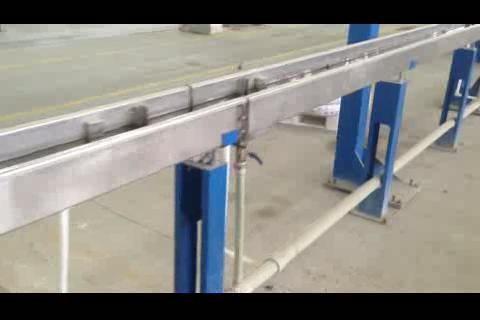

15. 16 meters single layer cooling water tank Set Fuchuan made
16. 1250KG Caterpillar set Fuchuan made
17. 159 Meter Counter Set Fuchuan made
18.1600 Big Shaft Take-up Machine Fuchuan made
19. Driving control Fuchuan made

Other information:

On terms of ; FOB Shanghai

Delivery date; 30% T/T,70% before shipment

Country of origin: China

Minimum order : 1set

Package: within container
