Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Sky Blue Or Apple Green Wire Twister Machine Diameter 630mm
Specifications
Brand Name :
Fuchuan
Model Number :
FC-1+6+12
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Supply Ability :
500 sets per month
Delivery Time :
45days
Packaging Details :
with container
Color :
sky blue or apple green
Take up bobbin :
diameter 630mm
Fit wire diameter :
0.16-0.64mm cable manufacturing equipment
Wire :
Apply for bunching 19pcs copper wires synchronous
Direction of lay :
Free to left or right
Stranding section area (mm²) :
0.38～6.0
Description

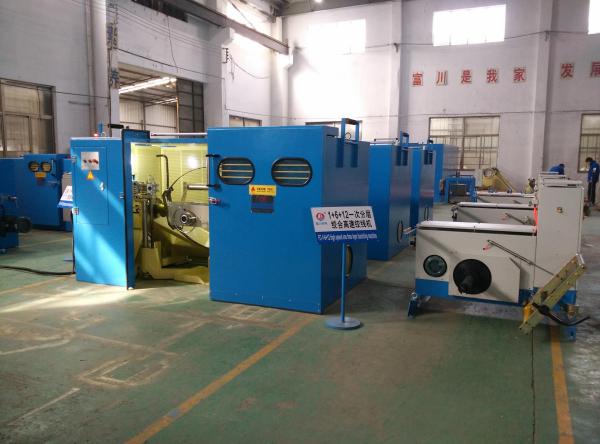

Fuchuan New product FC-1+6+12 Wire Bunching Machine with high productivity


Quick Details:

Apply for bunching 19pcs copper wires synchronous

Characteristics:

New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.


Specifications:

Equipment models 1+6+12(200 and 250bobbin) 1+6+12(630bobbin)
Twisting usage Apply for bunching 19pcs copper wires synchronous
Single wire dia(mm) 0.16～0.64
Stranding section area (mm²) 0.38～6.0
Pitch(mm) 11.6-100(34classes)
Direction of lay Free to right or left
Pay-off bobbin size 8inch,9inch OD630 ID125 H475
Pay-off type Mechanical friction Magnetic powder tension
Take-up bobbin size

OD630 ID127 H475 or OD630 ID56 H475

(Customized)

OD630 ID127 H475 or OD630 ID56 H475

(Customized)
Max rotating speed 2000rpm(4000twist) 2000rpm(4000twist)
Pay-off machine power 5.5KW 7.5KW
Take-up motor power 7.5KW 7.5KW
Tension control Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 5kgf 5kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Touch screen
Dimension(mm) 10000L 2500W 1650H 10000L 2500W 1650H


Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container
