PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
PCV PP PE Extrusion Line
Specifications
Brand Name :
Fuchuan
Model Number :
FC-70-6
Certification :
ISO9001:2008
Place of Origin :
China JiangSu
MOQ :
1set
Price :
discussion
Payment Terms :
T/T
Supply Ability :
25sets/per month
Delivery Time :
45days
Packaging Details :
fit for container
color :
sky blue
pay off bobbin :
Diameter 500/630/800/1000mm
Material :
low smoking non-halogen flameresistant
screw dia :
70
plastic :
electric power wire/ PU/NYLON wire
max speed :
500m/min
feed wire type :
active pay off or tension pay off
main machine power :
22kw
screw ratio :
25:1
control mode :
computer control
fit for wire :
core wire or sheathed wire
Description

Φ70high speed extrusion machine specification:

Descriptions of machines:

1. Applied to produce PVC plastic cable wire insulating and sheath extrusion.

2. Operation direction:right machine, face the machine, left hand pay off,right hand take up.

3. Machine centre height 1000mm

4. Inlet wire diameter: φ1.38 and φ1.78mm

5. Finished wire diameter: φ2.78 and φ3.38mm；

6. Production speed:400m/min

7. Operation type:touchscreen operation

8. Machine color:main machine sky blue；cabinet computer white；Safe color:yellow

9. Customer Machine working temperature: normal 34degree,Max 40degree.

10. Power of customer plant:3phase,220V,60HZ.

Specification:

No Specification number unit Note

1

 630active pay off machine 1 Set Fuchuan made

2

 120swing tension rack 1 Set Fuchuan made

3

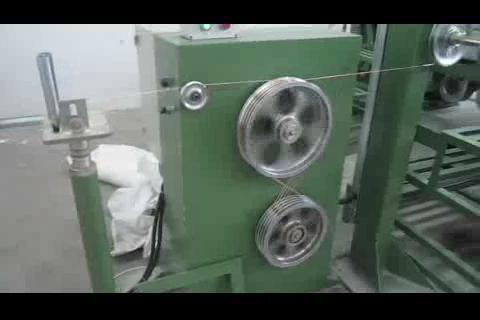

Wire straighting machine 1 set Fuchuan made

4

 U7 cross head 1 set For core wire

5

 X7 adjustable head 1 set For sheathing

6

 ￠70 extruder 1 set contains one screw

7

 ￠40fixed injection machine 1 set

8

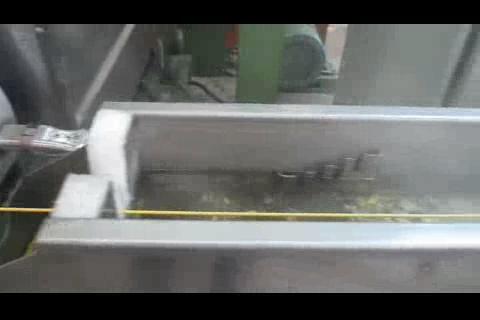

 1.8 meters adjustable cooling tank 1 set Fuchuan made

9

 Diameter measure device 1 set Shanghai On-line

10

 High speed printing machine 1 set Fuchuan made
11 Front 2meters back 6 meters fixed water tank 1 set Fuchuan made
12 510 rotation box 1 set Fuchuan made
13 510 hauling machine 1 set Fuchuan made
14 12 meters horizontal accumulator rack 1 set Fuchuan made
15 159 meter counter device 1 set Fuchuan made
16 Spark tester 1 set Tai Wan He Tai
17 800 doubleshaft take up machine 1 sets
18 50KG dryer hopper loader(for 70 extruder) 1 set Tai Wan XIN YI
19 Insuction machine(for 70 extruder) 1 set Tai Wan XIN YI
20 25KG dryer hopper loader(for 45injection ) 1 set Tai Wan XIN YI
21 Insuction machine(for 45injection machine) 1 set Tai Wan XIN YI

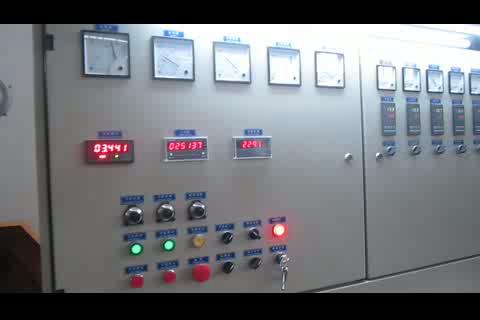

22 Electrical control parts 1 set

Payment terms:

30% down payment,70% before shipment

Delivery time:

45days after receive the downpayment

Minimum order:

1set

Package:

With container
