Specifications
Brand Name :
Fuchuan
Model Number :
FC-70+35
Certification :
ISO9001:2008
Place of Origin :
China JiangSu
MOQ :
1set
Price :
USD63300
Payment Terms :
T/T, L/C
Supply Ability :
500 SETS PER YEAR
Delivery Time :
45days
Packaging Details :
normal packing
color :
sky blue
pay off bobbin :
Diameter 500/630/800/1000mm
Material :
PVC,PP,PE,SR-PVC
screw dia :
70
screw ratio :
25:1
extrusion output :
150
max speed :
800m/min
Description

Sky Blue PVC PP Wire Extruder Machine 22Kw 800M / Min Max Speed

Quick Details:

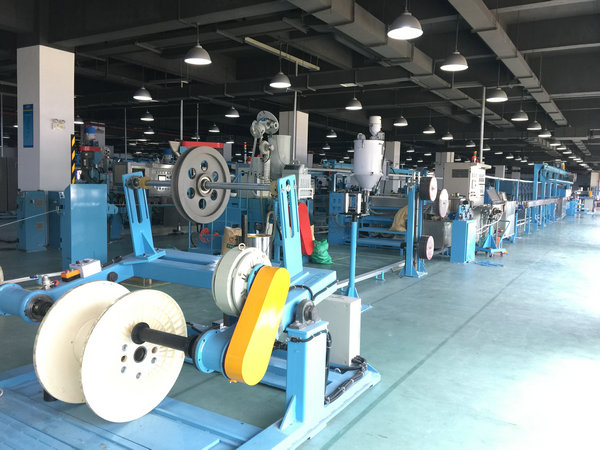

Serial insulating production line

Usage:

It is applied to drawing and extrude BV building wire, LAN cable and local cable.

Characteristics:

  1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor.
  2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.
  3. Device structure: drawing machine, annealing machine, extruder, take-up machine, tester and other equipments.

Specification:

Usage BV building wire
Inlet copper wire diameter Φ2.5-3.0mm
Outlet copper wire diameter Φ0.8-1.78mm
Extrusion finished wire diameter Φ2.0-5.0mm
Max speed 300
Max die number 17
Mechanical reduction ratio 20%
Capstan reduction ratio 15%
Drawing machine power 45KW
Annealing type DC 3phase
Accumulator Vertical accumulator
Extruder main machine FC-70+35
Injection machine 35horizonal injection machine
Extruder main machine power 22KW
printer Double printer
Cooling tank Double layers
Capstan 510double wheels
Accumulator horizonal
Take up

Shaft or coiling machine

Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container
