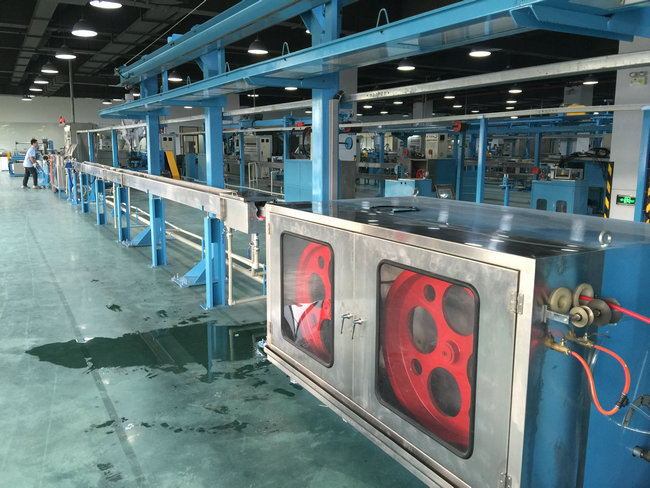

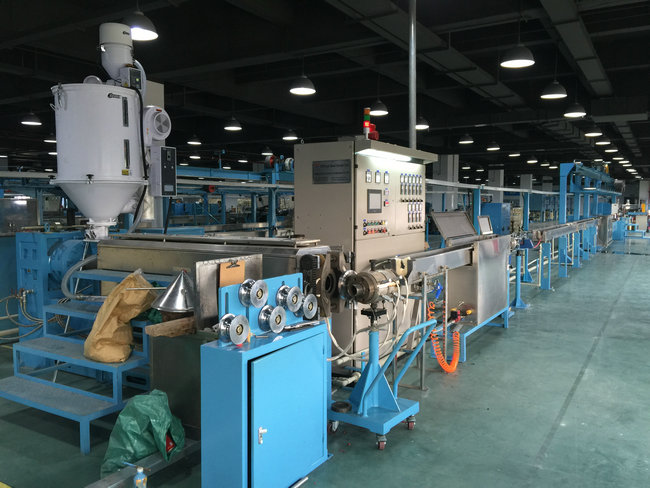

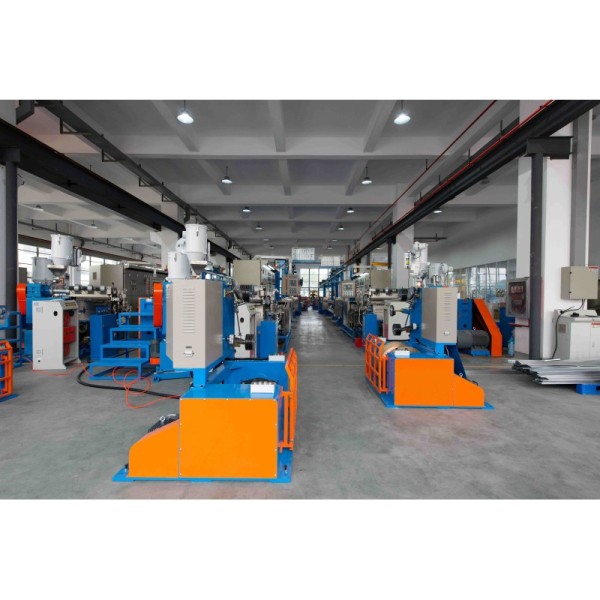

90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line
Specifications
Brand Name :
Fuchuan
Model Number :
FC-90+45
Certification :
ISO9001
Place of Origin :
China Kunshan
MOQ :
1set
Price :
USD53300
Payment Terms :
T/T, L/C
Supply Ability :
500 SET/PER YEAR
Delivery Time :
45days
Packaging Details :
normal packing
color :
sky blue
pay off bobbin :
Diameter 800/1250mm
Material :
PVC
screw dia :
40/50/60/70/80/90
extrusion :
extruder/ extrusion line
screw extruder :
diameter 90mm
Control System :
PLC
Cooling Method :
Air Cooling
Extrusion Capacity :
High
Extrusion Type :
Single Screw
Heating Power :
55kw
Heating Zone :
3-5
Power :
50-100kw
Product Name :
PVC Extrusion Machine
Screw Diameter :
50-1500mm
Screw L/D Ratio :
25:1
Screw Speed :
10-80rpm
Size :
Customized
Voltage :
380V
Weight :
1000-3000kg
Description

90mm Screw Extruder Insulation Sheath Extrusion Production Line

Quick detail :

Electrical wire, power wire extruder line,Extrusion Production Line

Usage:

Extruder machine is applied to produce the electrical wire, power wire, insulated sheathing and other wire&cable.

Specification:

Model FC-40 FC-50 FC-60 FC-70 FC-80 FC-90
Screw Diameter Φ40 Φ50 Φ60 Φ70 Φ80 Φ90
Screw L/D Ratio 26:1 26:1 26:1 26:1 25:1 25:1
Feed wire type Active pay off or tension pay off
Extrusion Max speed(m/min) 300 400 500 500 200 200
Extrusion output 40 70 100 150 200 250
Power for main machine(KW) 11 15 18.5 22 30 37
Wire diameter Φ0.5-3.0 Φ0.6-4.0 Φ0.8-8.0 Φ1.5-12 Φ5.0-20 Φ6.0-25
Max accumulator length(m) 220
Accumulator Horizonal accumulator
Cooling channel Folding W type

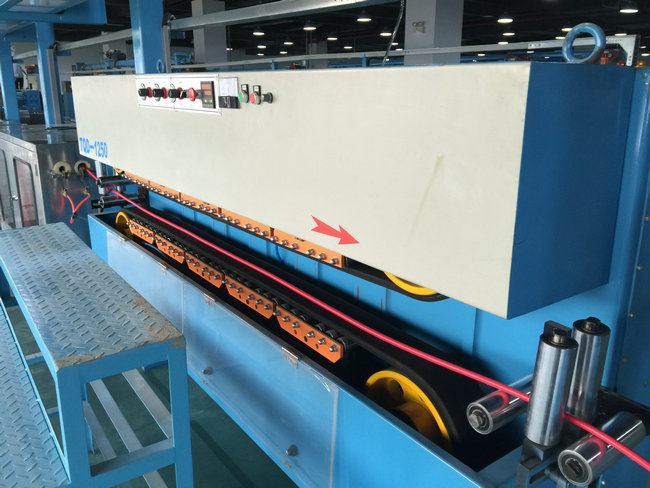

Capstan diameter Φ340 Φ410 Φ410 Φ510 Double wheel capstan or caterpillar capstan
Capstan power 2.2KW 3.7KW 3.7KW 5.5KW 7.5KW 7.5KW
Take up power 3.7KW 3.7KW 5.0KW 7.5KW 7.5KW 7.5KW
Take up type Double shaft take-up or shaftless take up

Features:

  • Product Name: Wire Extruder Machine
  • Screw Length: 2000mm
  • Weight: 1900kg
  • Extrusion Head Diameter: Φ90mm
  • Power Supply: 380V/50Hz
  • Plastic Materials: PVC
  • Wire Winding Machine
  • Wire Forming Machinery
  • Wire Forming Machinery

Other information:

Extrusion Production Line:800/1250 active pay off or barrel pay off

Terms of payment:

Extrusion Production Line:FOB Shanghai / Ningbo

Payment terms:

Extrusion Production Line support 30% down payment,70% before shipment

Delivery time:

Extrusion Production Line will be deliveried 45days after receive the downpayment

Origin:

Extrusion Production Line From China

Minimum order:

Extrusion Production Line at lest 1set

Packing and Shipping:

The Wire Extruder Machine is packaged and shipped with the following:

  • Wire Extruder Machine
  • User Manual
  • Quick Start Guide
  • Power Cord
  • Original Packaging
