Specifications
Brand Name :
FUCHUAN
Model Number :
FC-1+6(630F)+12
Certification :
CE
Place of Origin :
China Kunshan
MOQ :
1set
Price :
negotable
Payment Terms :
T/T, L/C
Delivery Time :
8weeks
Packaging Details :
simple packing
Fit for wire :
19pcs copper wires φ0.16mm - φ0.64mm in one time
Fit for bobbin :
diameter 630 or 250mm
wire :
19pcs of copper wire
mainly for wire :
BV,BVR,bare copper wire
color :
sky blue or apple green
pay off type :
magnetic tension
Description

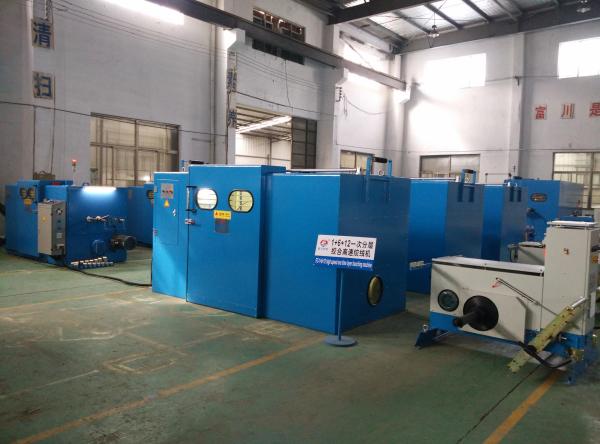

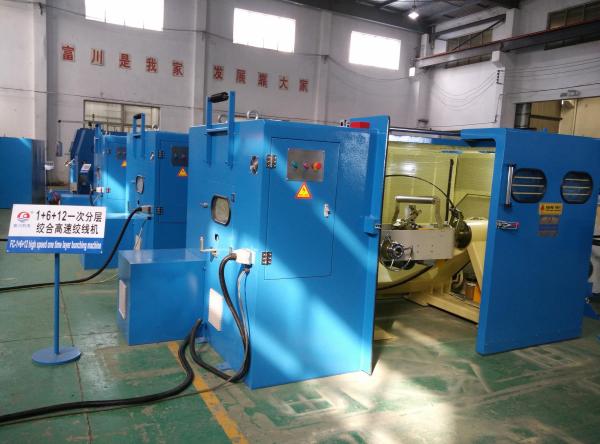

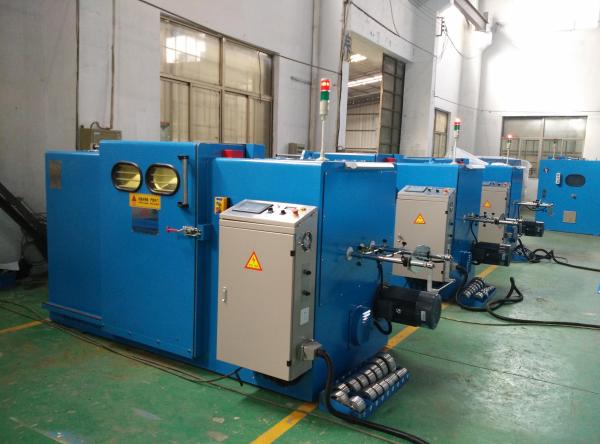

Fuchuan PLC Control Bare Copper Wire Twisting Machine / Equipment Magnetic Tension Pay Off

Quick Details:

Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time

It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.

Characteristics:

New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.

Specifications:

Equipment models

1+6+12(200bobbin)

FC-1+6+12(500bobbin)

Twisting usage

It is applicable to bunching 19pcs copper wires in one time

Single wire dia(mm)

φ0.16-φ0.64

Stranding section area (mm²)

0.38-6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Pay off bobbin size

8inch,9inch

φ500*φ125*475

Max rotating speed

2000(4000twist)

2600(5200twist)

Pay off type

Mechanical friction

Magnetic tension

Pay off machine power

5.5KW

7.5KW

Take up bobbin size

φ630*φ125*475

φ500*φ125*375

Pay off Inverter power

7.5KW

7.5KW

Main motor power

7.5KW

7.5KW

Take up inverter power

7.5KW

7.5KW

Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5.0kgf

5.0kgf

Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

10000L*2500W*1650H

10000L*2500W*1650H

Other Information


FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container
