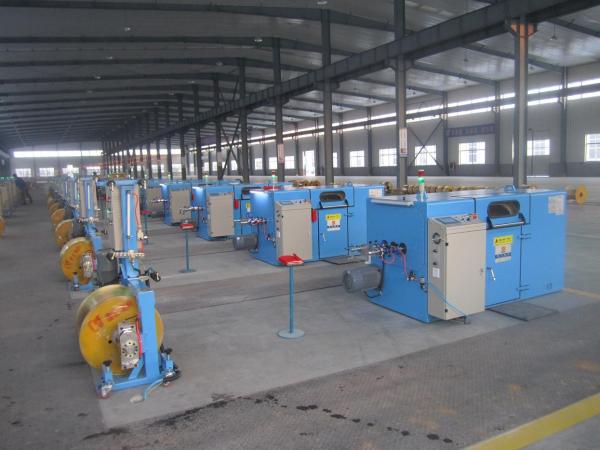

FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment
Specifications
Brand Name :
Fuchuan
Model Number :
FC-500B-4
Certification :
CE
Place of Origin :
China JiangSu
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20SET/PER MONTH
Delivery Time :
45days
Packaging Details :
normal packing
color :
sky blue
fit for bobbin :
Diameter 500mm
for wire :
bare copper wire/silver jacketed wire/enamelled wire
wire dia :
0.08-0.45mm
wire :
core wire double twist
magnetic powder clutch :
1.2kgf
Description

FUCHUAN Tinned Wire , Silver Jacketed Wire Copper , Wire Bunching Machine / Equipment

Quick Details:

Series for Model B normal wire high speed bunching machine and double twist bunching machine.

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Characteristics:

Japanese Technology ,Product in China.

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

Specifications:

Equipment models FC-500B-4
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.08-φ0.45
Stranding section area (mm²) 0.05-2.5
Core wire single wire dia φ0.5-φ1.5
Core wire stranding outer dia φ1.0-φ3.5
Pitch(mm) 6.3-52.3(24zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width φ500*φ56*375
Max rotating speed 3000(6000twist)
Main motor power 5.5KW
Inverter power 5.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 1.2kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable

Other Information


FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container
