Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Multi Wire High Speed Wire Drawing Machine With Annealing Device And Single Take Up
Specifications
Brand Name :
Herrman
Model Number :
100,120
Certification :
CE,ISO,CQC,SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C , D / A , D / P , T / T
Supply Ability :
50 Sets per year
Delivery Time :
3 months after receipt of down payment
Packaging Details :
To be packed into containers,suitable for long distance sea transportation and well protected aginst change of climate,moisture and shock.
Color :
Decided by user
Motor :
Siemens
Bobbin :
630mm
Bearing :
China famous brand or NSK
Max. speed :
1800m/min
Material :
Al, Cu, Al alloy
Description

Multi Wire Wire Drawing Machine With Annealing Device And Single Take up

1. Main Technical data:

Machine model Inlet diameter(mm) Outlet range(mm) Number of wires Number of dies Annealing contact pulley(mm) Annealing current(A) Driven control Max speed(m/min) Bobbin(mm)
HM-MD100 1.60-2.00 0.15-0.50 8 22/25 140 2000 AC/DC 1800 630
HM-MD120 2.20-2.60 0.20-0.90 8 22/25 200 4500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 14 17/22 200 4500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 16 22/25 140 2500 AC/DC 1800 630
HM-MD100 1.60-2.00 0.15-0.40 24 22/25 200 3000 AC/DC 1800 630


2. Application

The machine is used to draw 12 soft copper wires at same time. It is a proper equipment for producing high quality wires and cables.

3. Main machine

Dies quickly replace structure;

Lubrication: spray.

Drawing capstans Motors: AC-200kW.

Final capstan motor: AC-55kW.

Drawing capstans use zirconium oxide ceramic, which has long lifetime.

NSK’s bearing.


Transmission uses single gear, which is easy to maintain

Main machine gears: precise cline gears, made by 20CrMnTi.

Gear box recycle lubricant pump is set outside, driven by three phases AC motor, and connected with main machine.

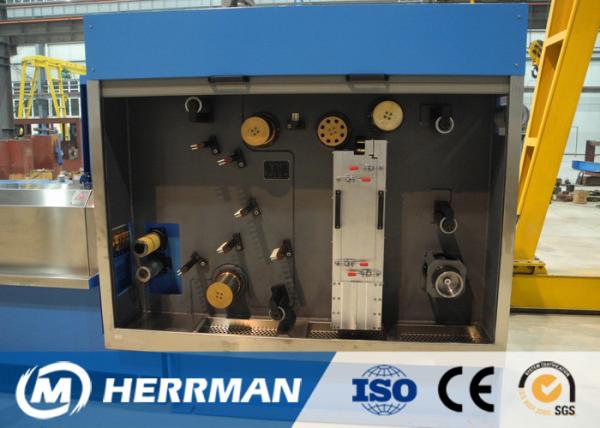

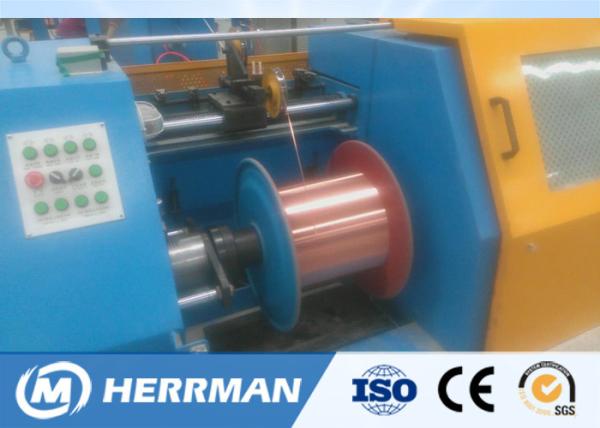

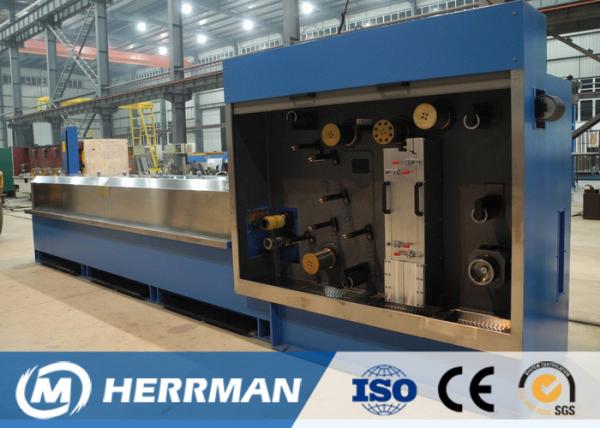

4. Picture for reference
