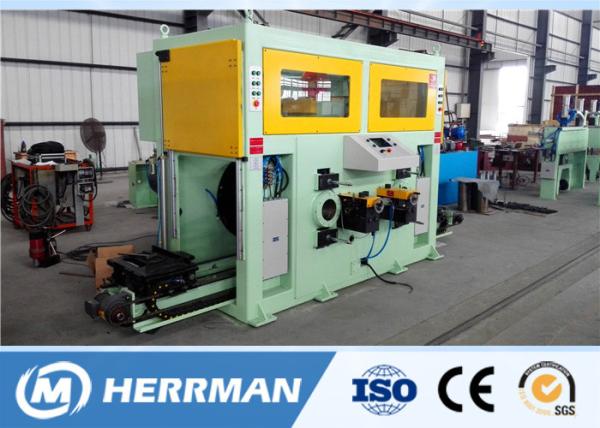

Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
Specifications
Brand Name :
Herrman
Model Number :
450/9, 450/11, 450/13
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SETS PER MONTH
Delivery Time :
131 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
High Speed Rod Breakdown Wire Drawing Machine For Copper And Aluminum
Inlet Diameter :
8mm for copper, 9.5mm for Aluminum or Aluminum Alloy
Outlet Diameter :
1.2mm - 4.5mm for copper, 1.8mm - 5.0mm for Aluminum or Aluminum Alloy
Driven Method :
Servo Motor without Gear and Belt
Line Speed :
1800m/min
Shapes :
Round Or Shaped Wire
Description


High Speed Rod Breakdown Wire Drawing Machine For Copper And Aluminum

Application

Copper and Aluminum Rod Breakdown Machine is used for drawing Φ9.5 Aluminum or Aluminum alloy rod to 1.8-5.0mm wires or Φ8 Copper rod to 1.2-4.5mm wires .


Main advantage

Multi motor technology for energy saving and better wire quality

User-friendly design and full access to the work area for easy string-up

High performance gearboxes

Quick change dies

Low preventive maintenance

Wire path suitable for shaped wire



Main Technical Data:

Copper Rod Breakdown Machine with separate motor control

Type

Inlet Dia
(mm)

Outlet Dia
(mm)

 Max Speed (m/s) Max Drawing Path Capstan Dia(mm)
450/9 ø8 Ø2.0- ø4.2 22 9 Ø450
450/11 ø8 Ø1.6- ø4.2 30 11 Ø450
450/13 ø8 Ø1.2- ø4.5 30 13 Ø450


Aluminium Rod Breakdown Machine with separate motor control

Type

Inlet Dia
(mm)

Outlet Dia
(mm)

 Max Speed (m/s) Max Drawing Path Capstan Dia(mm)
450/9 Ø9.5 Ø2.5- ø4.7 22 9 Ø450
450/11 ø9.5 Ø2.0- ø4.7 30 11 Ø450
450/13 ø9.5 Ø1.8- ø5.0 30 13 Ø450



Machine Drawing

Fast Speed Rod Breakdown Cable Drawing Machine For Copper And Aluminum Wire
