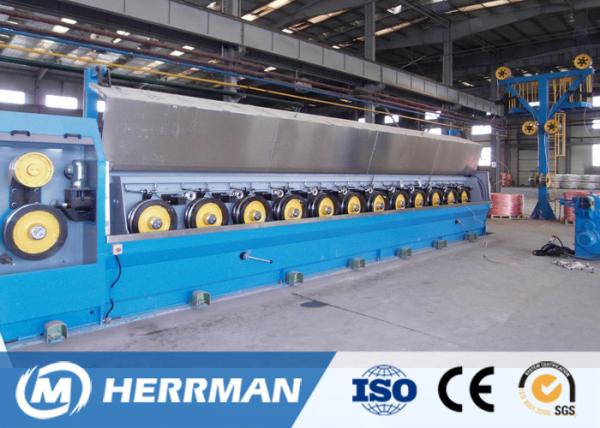

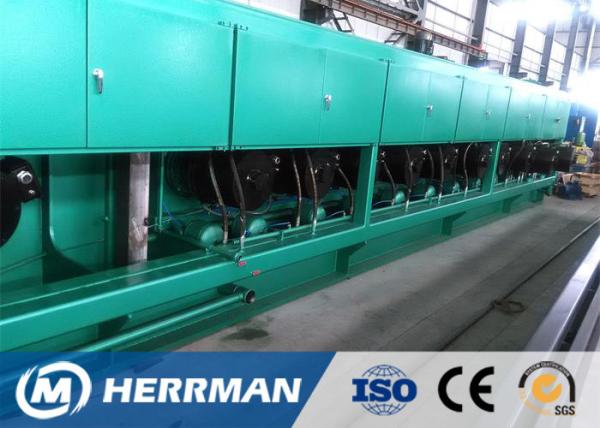

Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Horizontal Wire Drawing Equipment , Rod Breakdown Machine For Copper
Specifications
Brand Name :
Herrman
Model Number :
450-13
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, T/T，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
80 working days
Packaging Details :
Seaworthy packing suitable for export
Name :
Copper Rod Breakdown Machine with Annealer
Outlet wire dia. :
1.2~4.2mm
Inlet wire dia. :
8.0mm
Capstan Dia(mm) :
450
Inlet Dia (mm) :
Ø8
Max Speed (450/11) :
40m/s
Motor :
SIEMENS
Bearing :
NSK
Color :
Customized
HS code :
8479400000
Warranty :
1 year
Description

High speed Aluminium Rod Breakdown Machine controlled by separate motor RBD manufacturer

Description

Copper Rod Breakdown Machine with Annealer is used to produce the single copper wire sized φ1.2-4.2mm from copper rod of φ8mm. The drawing capstan is arranged in straight line and in a continuous order. The mechanical speed gets well along with the electric speed so as to change dies quickly as well as to unload the bobbins automatically without stop. It is highly praised for easy operation, high efficiency and excellent wire quality.

Feature

1 Separate motor independent transmission,non slide type wire drawing, less aluminum powder

2 Without belt,eliminating the problem of short-life of belt,and big noise

3 Due to low vibration,effectively lower the possibility of causing crackle when drawing Al alloy

4 Tension wheel between capstan to realized the non-slide drawing

5 Open type wire drawing box,easy operation and maintenance.

Main Specification

Type

Inlet Dia

(mm)

Outlet Dia

(mm)

 Max Speed (m/s) Max Drawing Path Capstan Dia(mm)
450/9 ø8 Ø2.0- ø4.2 22 9 Ø450
450/11 ø8 Ø1.6- ø4.2 30 11 Ø450
450/13 ø8 Ø1.2- ø4.5 30 13 Ø450

Drawing for reference
