Specifications
Brand Name :
Herrman
Model Number :
450-13
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
70 working days
Packaging Details :
by ply-wooden case suitable for export
Name :
Dual heads copper wire drawing machine
Usage :
Wire drawing
Type :
450/9;450/11;450/13
Outlet wire dia. :
1.2~4.2mm
Inlet wire dia. :
8.0 mm
Capstan Dia(mm) :
Ø450
Max Speed (m/s)(450/11) :
30
Inlet Dia (mm) :
2xØ8
Installed Capscity(KVA)(450/9) :
1200
Bearing :
NSK
Motor :
SIEMENS
Color :
Customized
HS code :
8479400000
Warranty :
1 year
Description

Dual heads copper wire drawing machine multi - head brass wire drawing machine

Description

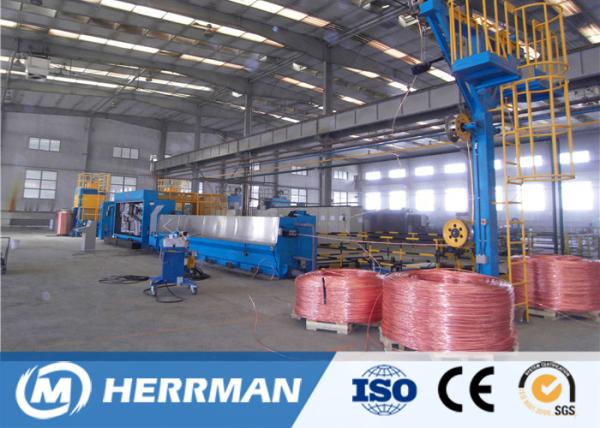

Dual heads copper wire drawing machine is used for drawing 2 copper rods to round wire and shaped wire as well as the round wire and Shaped wire.

Feature

1 Separate motor independent transmission,non slide type wire drawing, less aluminum powder

2 Without belt,eliminating the problem of short-life of belt,and big noise

3 Due to low vibration,effectively lower the possibility of causing crackle when drawing Al alloy

4 Tension wheel between capstan to realized the non-slide drawing

5 Open type wire drawing box,easy operation and maintenance.

Main Specification

Type

Inlet Dia

(mm)

Outlet Dia

(mm)

 Max Speed (m/s) Max Drawing Path Capstan Dia(mm) Installed Capscity(KVA)
450/9 2xø8 2x Ø2.1- ø4.2 22 2x 9 Ø450 1200
450/11 2x ø8 2x Ø1.7- ø5.0 30 2x 11 Ø450 1250
450/13 2x ø8 2x Ø1.2- ø5.0 30 2x 13 Ø450 1300

Drawing for reference

Dual Heads Copper Wire Drawing Machine Without Belt 8.0 Mm Inlet Wire Dia
