Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
Specifications
Brand Name :
Herrman
Model Number :
630 , 800 , 1000 , 1250
Certification :
ISO , CQC ,CE , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 Sets per month
Delivery Time :
3 months after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Application :
Data cables , Lan cables , High frequency cables , power cables
Structure :
Cantilever Frame type
Motor :
Siemens
Color :
Customerized
Twist direction :
S / Z optional
Control :
PLC automatic control system
Description

Cantilever Frame Type Cable Twisting Machine Single Twister Power Cable

1. Application

Data cables

Lan cables

High efficiency cables

Power Cables

2. Technical Parameter

Model 630 800 1000 1250
Rotate speed 850rpm 600rpm 500rpm 400rpm
Bobbin dia. 630mm 800mm 1000mm 1250mm
Finished OD 3-10mm 3-15mm 3-20mm 10-25mm
Pitch range 25-180mm 30-200mm 40-250mm 40-300mm
Twist direction S/Z optional
Take up type Shaft lever type
Control system PLC auto control system

3. Auto Oiling Device

With setting oiling period and time on PLC.

Oiling device will auto process , makes machine more durable

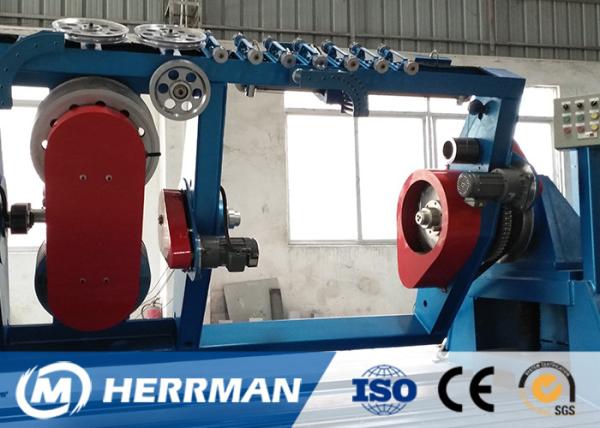

4. Picture for reference

Large Cantilever Frame Cable Twisting Machine Single Twister S / Z Optional Direction
