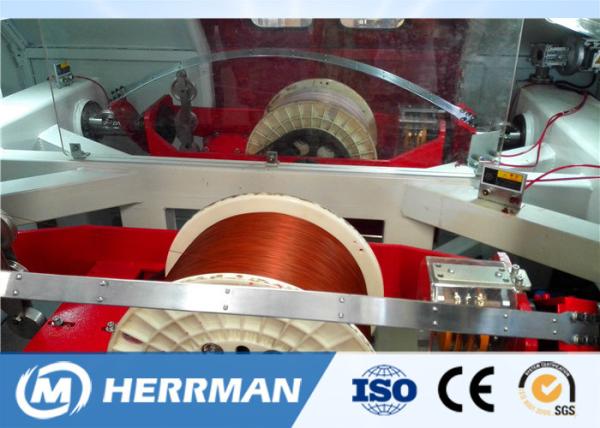

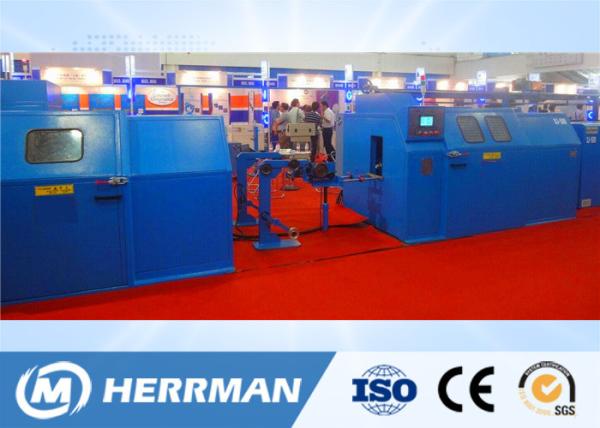

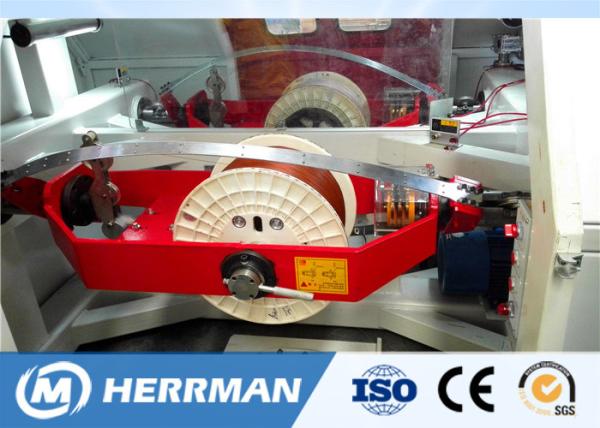

High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
High Efficiency Pair Cable Twisting Machine For Data Cable Left Or Right Direction
Specifications
Brand Name :
Herrman
Model Number :
500mm - 2000mm
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SETS PER MONTH
Delivery Time :
100 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
Pair Cable Twisting Machine
Individual core wire :
0.35mm - 1.6mm
Max Linear speed :
160mm
Control system :
PLC automatic control system
Lay length range :
4~80mm
Back twist rate :
100% torsion free
Description

Automatic High Speed Pair Cable Twisting Machine For Data Cable

Application

Double twist operate easily and the speed reach up to 5000 TPM and twist deviation is less than 0.5mm.

It is suitable for twisting LAN cable cat 5/5e/5+/6 with less than 350 Mhz.

The pay-off device adopts frequency regulation speed active pay-off,it is controlled by frequency regulation speed and control core wire tension by the feedback of high-sensitivity tension oscillating rod,

thus, can be ensure the tension is uniformity.

Take-up tension is controlled by low inertia high-sensitivity electromagnetic powder clutch (Mitsubishi) and programmable logic controller (PLC), can be ensure the tension is uniformity.

The whole machine adopts precision control, therefore, can make resistance unbalance and capacitance unbalance of wire reducing to the least, make date cable up to excellent electric appliance performance.

Technical parameter

Conductor diameter 0.40 〜0.65mm
Max insulation diameter 2.60mm
Max twist diameter 5.20mm
Twist pitch range 10〜30mm ( every other 0 .5mm is one grade, change gear)
Bow rotate speed 250〜2500RPM ( stepless adjustable)
Twist speed 500〜5000TPM
Max line speed 150 m/m in
Twist direction Left or right
Main motor power 7.5KW 380V Three-phase AC motor,frequency conversion
Pay-off bobbin 500(Outer diameter)X250(barrel diameter)X250(inner width) X56mm(shaft hole)
Take-up bobbin 500(Outer diameter)X250(barrel diameter)X250(inner width) X56mm(shaft hole)
Take-up bobbin lifting Gear reducer motor lifting
Operating direction From left to right or from right to left
Installation dimension 5.50m(L)X1.50m(W)X1.40m(H)
Total weight 2500kg
