Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
55 working days
Packaging Details :
Seaworthy packing suitable for export
Name :
Tight Buffer Fiber Extruding Line
Material :
LSZH, PVC
No. of optical fiber :
2spools or 4spools
Tight buffer fiber dia. :
0.6mm , 0.9mm
Take-up reel    :
Φ400
Structure speed    :
300m/min
Working speed    :
250m/min
Motor :
SIEMENS
Bearing :
NSK
HS Code :
84794000
Color :
Customized
Warranty :
1 year
Description

Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable

Description

The Tight coating equipment tight buffering is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm.The extruding material can be LSZH, PVC.

Line configuration

- 2 spools optical fiber pay-off

- Preheating and dry device

- One extruder SJ30×25 one self-center head

(With feed, compound dryer device and master batch)

- 4M Hot water trough

- Hot water tank

- 12 M cooling trough

- Cooling water tank (with refrigerating device)

- Blow dryer device

- Diameter control system

- 400 capstan

- Dual reel take-up for tight buffer fiber

- Electrical control system

Main Specification

  Structure speed   300m/min
  Working speed   250m/min
  Dia. of optical fiber   Φ0.25～Φ0.40mm
  Tight buffer fiber dia.   0.6mm , 0.9mm
  No. of optical fiber   2 spools
  Optical fiber reel size   φ236×108mm×φ160
  φ236×236mm×φ160
  Take-up reel   Φ400

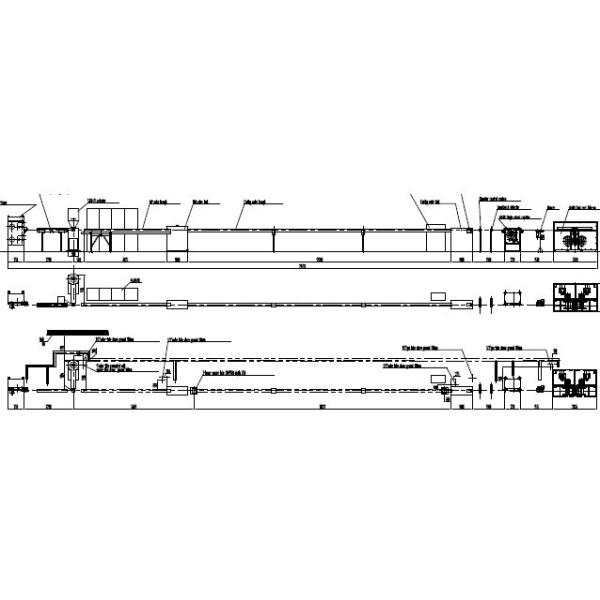

Drawing for reference

Tight Buffering Optical Fiber Cable Manufacturing Machinery For Micro Cable
