Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Professional Fiber Optic Cable Production Line SZ Strander Premise Cable Machine
Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
CE, SGS,ISO9001:2015
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
15 sets per month
Delivery Time :
55 working days
Packaging Details :
Seaworthy packing suitable for export
Name :
Fiber optic premises distribution cable machine
Material :
Φ0.6mm,Φ0.9mm tight optic fiber
Size of take-up reel   :
PN630mm ~PN1000mm
Diameter of premise cable :
Φ1.8～Φ6.2mm
Stranding Pitch    :
80~400mm
Line speed :
≤60m/min（Dia.6.2mm, PVC）
Size of tight fiber reel  :
Φ235mm,Φ400mm
Stranding angle    :
0~±6π
Bearing :
NSK
Motor :
SIEMENS
Color :
Customized
Warranty :
1 year
Description

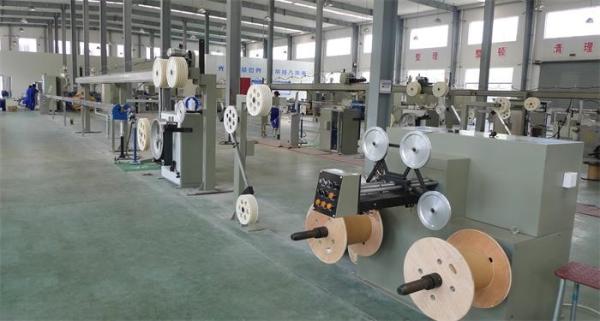

Fiber optic premises distribution cable machine for indoor premise cable SZ strander

Description

The Fiber optic premises distribution cable machine mainly is used to produce simplex cable, duplex cable and the distribution cable which has the cores 2~12 fibers.

Main Specification

  Diameter of tight optic fiber   Φ0.6mm,Φ0.9mm
  Diameter of premise cable   Φ1.8～Φ6.2mm
  Line speed   ≤60m/min(Dia.6.2mm, PVC)
  Size of tight fiber reel   Φ235mm,Φ400mm
  Stranding angle   0~±6π
  Stranding Pitch   80~400mm
  Aramid cops no.   12cops
  Extruder   SJ65
  Size of take-up reel   PN630mm ~PN1000mm

Line configuration

3.1 FRP cores pay-off frame

3.2 12 tight fibers pay-off units

3.3 SZ stranding unit

3.4 Aramid driven pay-off device 12 sets

3.5 SJ65 extruder

3.6 Hot water trough 4m
3.7 Hot water tank

3.8 Cooling trough 16m

3.9 Blow dryer

3.10 Diameter control system

3.11 Φ630 Double wheel capstan

3.12 Φ1000 take-up (consist accumulating)

3.13 Electric control system

3.14 Ink code printer user purchase

Drawing for reference
