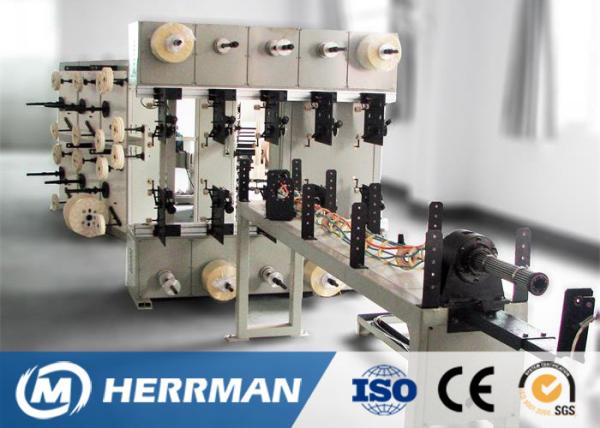

Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Fiber Optic Drop / FTTH / Premises Cable Making Equipment Jacketing Machine 80rpm
Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
25 sets per month
Delivery Time :
65 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
Fiber Optic Premises Cable Jacketing Machine
Size of take-up reel :
PN800mm
Simplex cable diameter :
0.9mm
Diameter of optical fiber :
0.25mm
Structure speed of stranding machine :
80rpm
Stranding Pitch :
80~400mm
Line center height :
1000mm
Motor :
SIEMENS
Bearing :
NSK
Color :
Color plate provided by customer
HS code :
84794000
Warranty :
1 year
Description

Fiber Optic Premises Cable Jacketing Machine for drop cable FTTH cable premises cable

Description

This Fiber Optic Premises Cable Jacketing Machine is mainly used to strand 12 cores of simplex cables or tight coated fibers. After stranding, the cables/fibers are coated with aramid yarn then be sheathed with LSZH, PVC,TPU

Main Specification

Diameter of optical fiber 0.25mm
Diameter of tight optic fiber Φ0.6mm,Φ0.9mm
Diameter of premise cable Φ6.2mm (12 cores)
Line speed ≤120m/min(single core, pvc)
50m/min (12 cores, pvc)
80m/min(2.0×3.0FTTH cable)
60 m/min(2.0×5.0FTTH cable)
Size of tight fiber reel Φ400mm*Φ56*300
Size of optical fiber reel 25km or 50km reel for fiber
Tight fiber pay-off tension 0.4N~1.5N (adjustable)
Optical fiber tension 0.4~1.2N(adjustable)
Stranding angle 0~±6π
Stranding Pitch 80~400mm
Aramid cops no. 12cops
Aramid pay-off tension 0.6N~3N
Extruder type SJ50 ×25
Take-up tension 5N~20N (adjustable)
Size of take-up reel PN800mm
Line length 34m×4m×3.5m(L×W×H)
Power requirement 75Kw
Line operation direction appointed by consumer
Line color appointed by consumer
Line center height 1000mm
Overall dimension 34m*3m*2.8m

Line configuration

1 Φ800mm wire pay-off

2 Tight fibers and optical fiber pay-off units

3 Preheating and dry device

4 Dieletic strength member pay-off

5 SZ stranding unit

6 Aramid driven pay-off device

7 SJ50 extruder

8 Hot water trough 4m
9 Hot water tank

10 Cooling trough 12m

11 Blow dryer

12 Diameter control system

13 Φ630 Double wheel capstan

14 Φ1000 take-up (consist accumulating)

15 Electric control system

16 Ink code printer user purchase

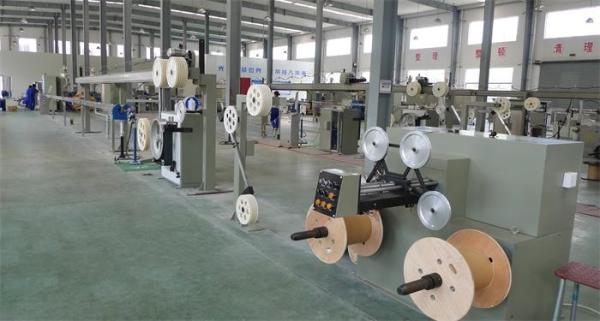

Details Photo
