Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, T/T，By Negotiation
Supply Ability :
30 sets per month
Delivery Time :
55 working days
Packaging Details :
By seaworthy packing suitable for export
Name :
Fiber optic ribbon cable Production Line
Structure sp Structure speed  :
Max. 600m/min
Producing speed    :
50～400m/min
Take-up tension :
2～6N
Pay-off tension :
0.4～1N
Optical fiber reel size    :
25km and 50km reel
Line Length :
About 7m
Motor :
SIEMENS
Bearing :
NSK
HS code :
847940
Color :
Customized
Warranty :
1 year
Description

Fiber optic ribbon cable Production Line optic ribbon machine

Description

This Fiber optic ribbon cable Production Line is mainly used to produce optical fiber ribbons with 4-core, 6-core and 12-core fibers.

Main Specification

  Structure speed    Max. 600m/min
  Producing speed   50～400m/min
  Pay-off tension   0.4～1N
  Take-up tension   2～6N
  Optical fiber reel size   25km and 50km reel
  Take-up reel     φ410×390×φ310 ,arbor hole φ50.8mm
  Line Length   about 7m

Components of the line

3.1 12 cops of fiber pay-off stand 1set

3.2 Optical fiber ribbon pay-off 1set

3.3 Functional main cabinet (coating, curing, hauling off and guiding) 1set

3.4 Take-up and traversing device 1set

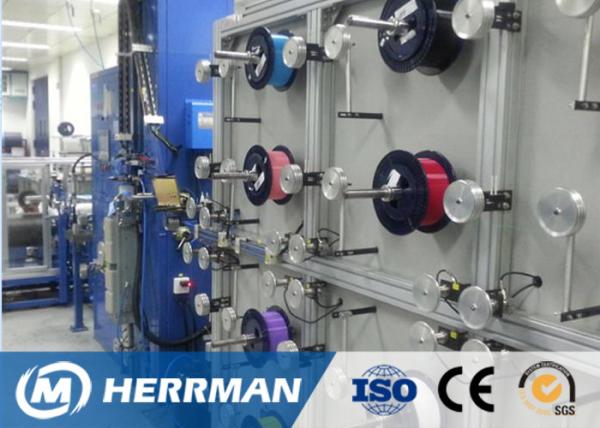

Machine Photo
