Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
50 working days
Packaging Details :
by ply-wooden case suitable for export
Product Name :
Stainless steel loose tube production line
OD of stainless steel tube :
2~5mm
Thickness of stainless steel tube :
0.15—0.3mm
Over-length :
1.5‰～7‰
No.s of optic fibers :
1～48 cores
Total power :
70KW
Bearing :
NSK
Motor :
SIEMENS
Central height :
1000mm
HS Code :
8479400000
Color :
Color plate provided by customer
Warranty :
1 year
Description

Stainless steel loose tube production line SSLT making machine SSLT equipment for OPGW

Description

Stainless steel loose tube production line is mainly used for producing stainless steel tube, which is for OPGW optic fiber cable or submarine cable.

Main Specification

OD of stainless steel tube φ2.0—φ5.0mm
Thickness of stainless steel tube 0.15—0.3mm
Length capable produce continuously 50km
Normal welding speed 13m/min
Max.welding speed 20m/min
No.s of optic fibers 1～48 cores
Optic fiber pay-off tension 0.2～1.5N
Over-length 1.5‰～7‰
Central height 1000mm
Total power 70KW

Composition of the line

1 Stainless steel tape fold style pay-off

2 Stainless steel tape transverse welding device

3 48 fibers pay-off cabinet

4 Gel filling device

5 Stainless steel tape cutting, forming, welding unit

(Including 2 sets of waste tape winding devices)

6 Former stage clamp traction unit

7 First drawing device

8 Oil circulation cooling system

9 Latter stage clamp traction unit

10 Second drawing device

11 Overlength control device

12 φ800 single wheel capstan

13 Auxiliary caterpillar

14 Meter counter

15 Eddy current flaw detector

16 Tension control device

17 Take-up device

18 Electrical control system

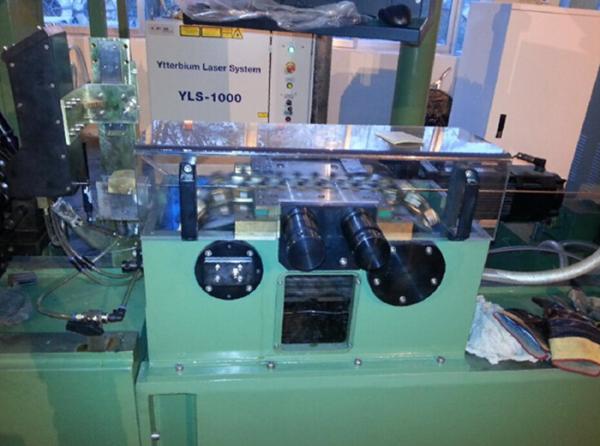

​Machine Photo

Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
