Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
Specifications
Brand Name :
Herrman
Model Number :
HM05
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, T/T
Supply Ability :
20 sets per month
Delivery Time :
55 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
600MPM optic fiber cable buffering machine
Material :
PBT,PE
Optical fiber number :
12
Line structure speed :
500m/min
Running speed :
600mpm
Take up reel size :
PN800mm
Hot water temperature :
70℃±2℃
Installed power :
85kw
Centering Height :
1000mm
Color :
Color plate provided by customer
HS code :
8479400000
Motor :
SIEMENS
Bearing :
NSK
Warranty :
12 months
Description

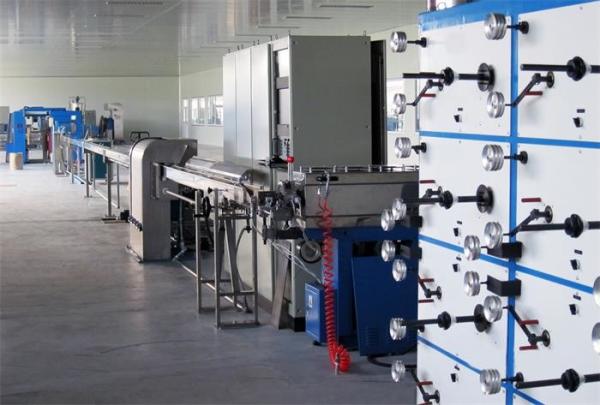

600MPM optic fiber cable buffering machine loose tube production line

Description

The 600MPM optic fiber cable buffering machine is used to extrude loose tube in which 2-12 optical fibers are contained. The extruding material can be PBT,PE.

Line Configuration

2.1 12 optical fiber payoff

2.2 Gel filling device and bubble remover device

2.3 Extruder SJ50×30 and headc

(With Loader and hopper compound dryer)

2.4 Color Master batch Compounder

2.5 4+4M Hot water trough

2.6 Hot water tank

2.7 E.F.L capstan Ф800mm

2.8 12 M cooling trough

2.9 Cooling water tank (with refrigerating device)

2.10 Blow dryer device

2.11 Diameter control system

2.12 Ф800 Capstan (with tension control device)

2.13 Accumulator type tension controller

2.14 Full-automatic double spooler

2.15 Dry loose tube making parts

2.16 Electrical control system

Main Specification

Optical fiber number 12
Pay-off tension (0.3-1.2N)±0.05N
Optical fiber reel size

266mm×176mm

405mm×263mm
Line structure speed 500m/min
Operation speed

350m/min (dia.Ф1.8mm with jelly)

160m/min(dia.Ф1.8mm,dry loose tube)
Extruded tube dia (Ф1.2—Ф4.0)mm±0.05
Extruded material PBT
Hot water temperature 70℃±2℃
Take up reel size PN800mm
Take-up tension 2.5—6.5N
E.F.L range 0~0.3%
Extra-attenuation ≤0.02dB/km(1310nm,1550nm)
Accuracy of the counter ±0.2%
Centering Height 1000mm
Line direction Appointment by user
Line color Appointment by user
Overall dimension 35m×3m×3m
Installed power 85kw
Total weight 14T (approximately)
Drawing for reference
Siemens Motor Fiber Optic Cable Production Line 600MPM Optic Fiber Buffering Machine
