High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
Specifications
Brand Name :
Herrman
Model Number :
HM07
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
50 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
Optic fiber coloring equipement color ring marker
Pay-off and take-up tension :
0.3N～1.2N±0.05N
Compressed air :
0.5mpa
Thickness of coloring layer :
3～5μm
Accuracy of the counter :
≤0.1%
Coloring Speed :
3000mpm
Color :
Color plate provided by customer
HS code :
847940
Motor :
SIEMENS
Bearing :
NSK
Warranty :
12 months
Description

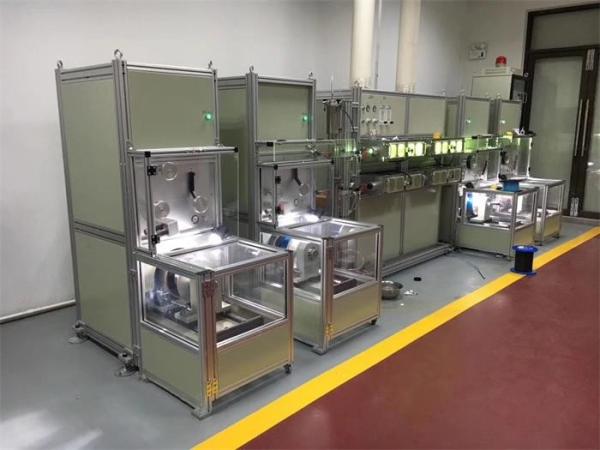

HM07 High speed optic fiber coloring equipement color ring marker

Description

The optic fiber coloring equipement color ring marker is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.

Main Specification

Optical fiber number 1
Coloring speed ≤2600m/min (Nitrogen gas )
Structure speed ≤3000m/min
Rewinding speed ≤2200m/min
Thickness of coloring layer 3～5μm
Pay-off tension 0.3N～1.2N±0.05N
Take-up tension 0.3N～1.2N±0.05N
Traversing pitch 0.1～1.0mm±0.01mm
Extra-attenuation after coloring ≤0.02dB/Km(SM , 1500Nm)
Accuracy of the counter ≤0.1%
Optical fiber reel size (max.) 25km/50km reel weight 10kg
236～300mm (out dia. of reel)
108～250mm (width of reel)
Ф25.4mm (axle hole)
Power supply

three phases five wires,3×380V±10%,

50HZ ±2%, power 23KW
nitrogen purity ≥99.9%
compressed air 0.5mpa

Drawing for reference

High Speed Fiber Optic Cable Production Line Fiber Coloring Machine 3000mpm
