Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
Specifications
Brand Name :
Herrman
Model Number :
SJ80
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20 sets per month
Delivery Time :
65 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
SJ80 Optic fiber cable jacketing machine
Function :
Cable jacketing
Screw Type   :
BM
Kevlar device :
included
Metal armoring :
including
Max Extruder Output   :
280kg/h
Line Speed    :
10--90 m/min
Line Length   :
<60m approximately
Central height :
1000mm
Motor :
SIEMENS
Bearing :
NSK
HS code :
847940
Color :
Customized
Warranty :
1 year
Description

SJ80 Optic fiber cable jacketing machine extrusion line for outdoor cable

Description ​

The SJ80 Optic fiber cable jacketing machine is used to extrude inner sheathing and outer sheathing for optical cable, the extruding materials: LDPE, MDPE, HDPE and so on.

Main Specification

Cable Diameter   Ф7-Ф35mm
  Structure Speed   100m/min
  Line Speed   10--90 m/min
  Line Length   <60m approximately
  Screw Type   BM
  Line center height   1000mm
  Pay-off reel size   PN1000-PN2000
  Take-up Reel Size   PN1000-PN2000
  Extruder Output   Max280kg/h

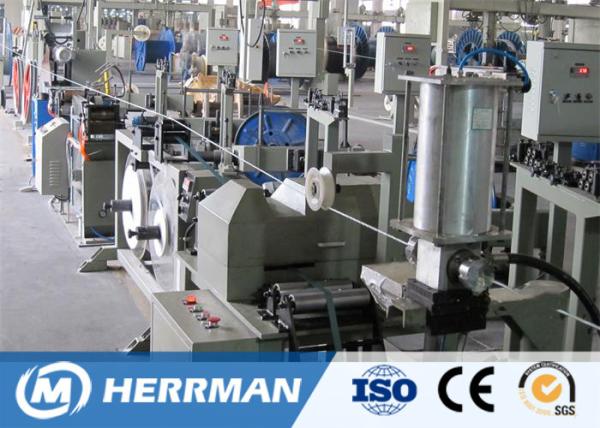

Line Configuration

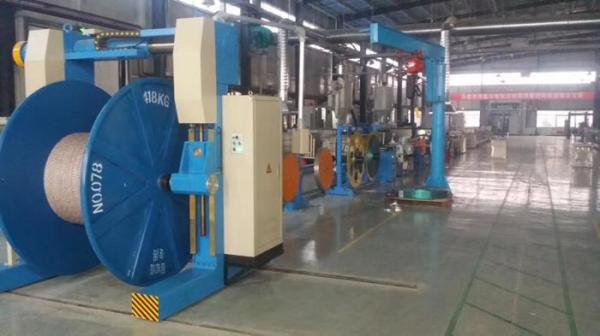

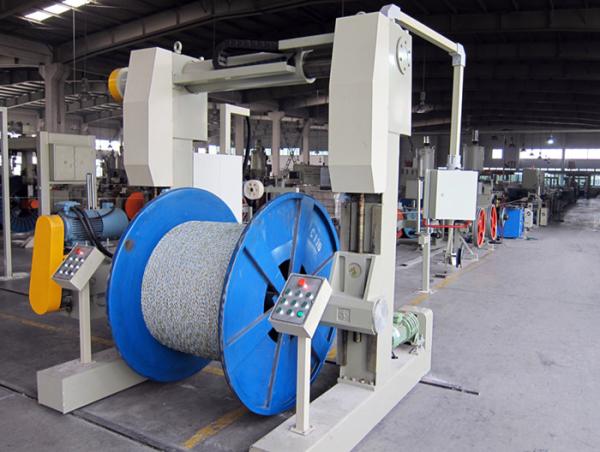

1Φ1600 Portal type rail travelling pay-off

2 Swaying beam dancer

3 SJ80×25 extruder and cross head

4 Loader and hopper compound dryer

5 Hot-water tank and 4m movable hot-water trough

6 Stainless steel cooling-water trough16m

7 Blow dryer device

8 Diameter control device

9 Lump&neck detector

10 Φ800 Capstan

11 Swaying beam dancer

12 Φ1600 Portal type rail travelling take-up with traverse

13 Electrical control system

Drawing for reference

Outdoor Fiber Optic Cable Production Line Cable Jacketing Machine With Metal Armoring
