Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
Specifications
Brand Name :
Herrman
Model Number :
Sheathing , SZ Stranding
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Application :
Premise cable
Machine :
SZ stranding and Sheathing
Bearing :
NSK
PLC :
Siemens
Motor :
Siemens or China famous brand
Inverter :
Siemens
Description

Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing

1. Application

SZ Stranding: The line is mainly used to produce simplex cable , duplex cable and the distribution cable which has the cores 2~12 fibers.

2. SZ Stranding

Diameter of tight optic fiber 0.6mm,0.9mm
Diameter of premise cable 1.8-6.2mm
Line speed ≤60m/min(dia.6.2mm,PVC)
Size of tight fiber reel 235mm,400mm
Stranding angle 0~±6
Stranding pitch 80~400mm
Aramid cops no. 12cops
Extruder SJ65
Size of take up reel PN630mm~PN1000mm

3. Usage

Sheathing: This line is mainly used to strand 12 cores of simplex cables or tight coated fibers. After stranding, the cables / fibers are coated with aramid yarn then be sheathed with LSZH , PVC ,TPU

4. Sheathing

Simplex cable diameter 2.0mm
Tight buffer fiber diameter 0.9mm
Number of fiber pay off 12
Structure speed of stranding machine 80rpm
Working speed of stranding machine 10~50rpm
Stranding pitch 20~800mm
Extruder SJ65X25

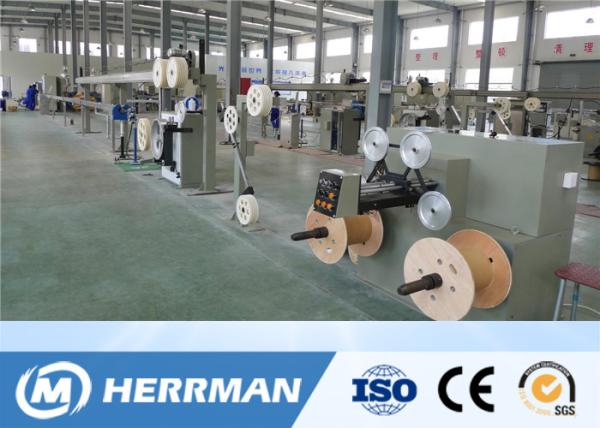

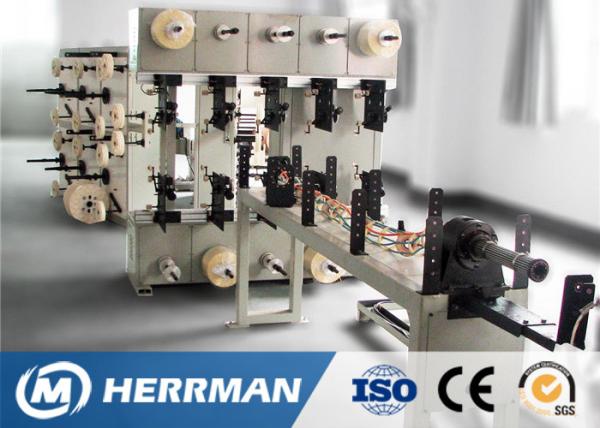

5. Picture for reference

Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
