Specifications
Brand Name :
Herrman
Model Number :
HM06
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P,By Negotiation
Supply Ability :
20 sets per month
Delivery Time :
65 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
800MPM high speed second coating production line optic fiber cable making machine
Type    :
HM06
Material :
PBT,PE
Optical fiber number :
24
Take up reel size :
PN800mm, PN630
Running speed :
800mpm
Pay-off tension   :
(0.4-1.2N)±0.05N
E.F.L range :
0~0.3%
Extra-attenuation :
≤0.02dB/km(1310nm,1550nm)
Bearing :
NSK
Motor :
SIEMENS
HS code :
8479400000
Color :
Color plate provided by customer
Warranty :
1 year
Description

800MPM high speed second coating production line optic fiber cable making machine

Description

The 800MPM high speed second coating production line optic fiber cable making machine is used to extrude loose tube in which 2-12 optical fibers are contained. The extruding material can be PBT,PE.

Line Configuration

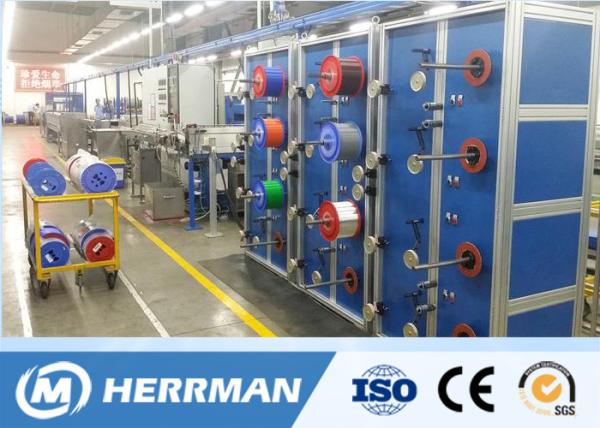

2.1 12 optical fiber payoff

2.2 Gel filling device and bubble remover device

2.3 Extruder SJ50×30 and head

(With Loader and hopper compound dryer)

2.4 Color Master batch Compounder

2.5 4+4M Hot water trough

2.6 Hot water tank

2.7 E.F.L capstan Ф800mm

2.8 12 M cooling trough

2.9 Cooling water tank (with refrigerating device)

2.10 Blow dryer device

2.11 Diameter control system

2.12 Ф800 Capstan (with tension control device)

2.13 Accumulator type tension controller

2.14 Full-automatic double spooler

2.15 Dry loose tube making parts

2.16 Electrical control system

Main Specification

Type
  
HM06

 Optical fiber number
24
 Pay-off tension    (0.4-1.2N)±0.05N
 Optical fiber reel size 25km/50km reel
 Line structure speed 800m/min
 Operation speed 600m/min (Ф1.8*0.3mm, 6-fiber, without SZ device)
 Extruded tube dia. (Ф1.0-Ф6.0)mm±0.05
 Take up reel size PN800mm, PN630
 E.F.L range 0~0.3%
 Extra-attenuation ≤0.02dB/km(1310nm,1550nm)
Drawing for reference
800MPM high speed second coating production line optic fiber cable making machine
