Specifications
Brand Name :
Herrman
Model Number :
Tight buffer fiber
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Structure speed :
300m/min
Working speed :
250m/min
Dia. of optical fiber :
0.25 ~ 0.40mm
Take up :
400mm
Color :
Customerized
Motor :
Siemens
Description

Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruder

1. Application

The line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm. The extruding material can be LSZH , PVC.

2. Technical Specification

Structure speed 400m/min
Working speed 300m/min
Dia. of optical fiber 0.25-0.40mm
Tight buffer fiber dia. 0.6mm,0.9mm
No. of optical fiber 2 spools
Optical fiber reel size 236x108mmx160;236x236mmx160
Take up reel 400

3. Line configuration

3.1 Dual optic-fiber pay-off frame 1

3.2 Preheating and dry device 1

3.3 SJ30 extruder 1

3.4 Hot water trough 4m

3.5 Hot water tank 1

3.6 Cooling water trough 8m

3.7 Blow dryer device 1

3.7 Diameter detecting system 1

3.9 Single wheel capstan with pressing belt 1

3.10 Take-up tension controller 1

3.11 Ф400 Take-up frame 1

3.12 Electric control system 1

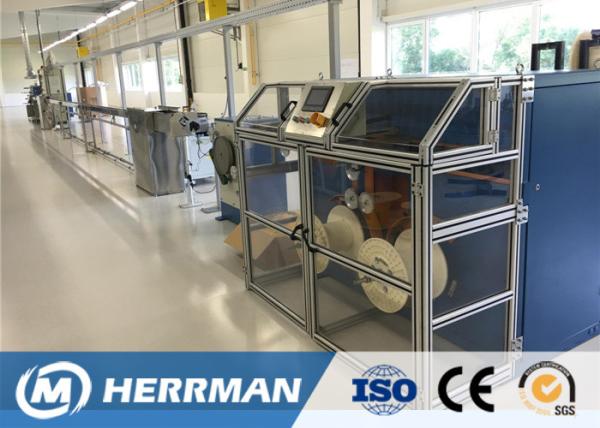

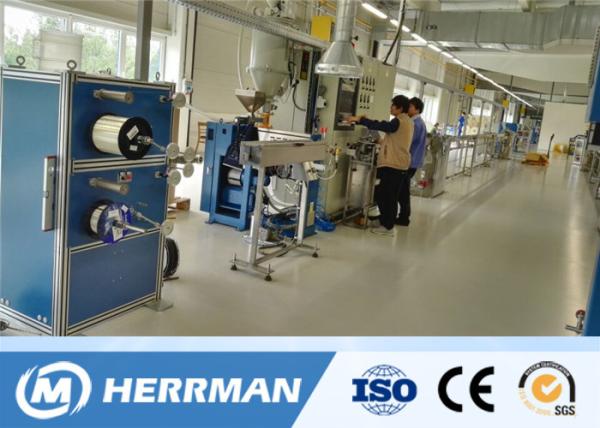

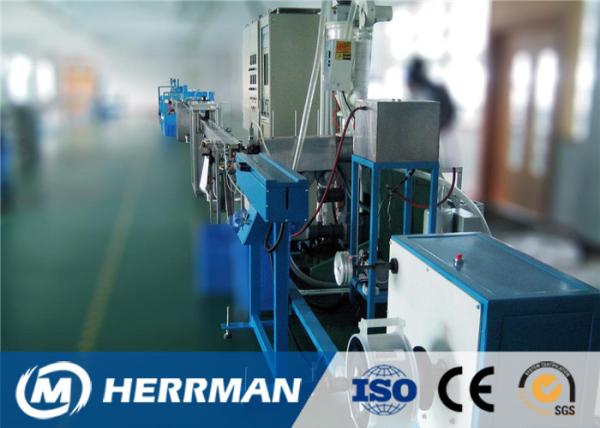

4. Picture for reference
