Specifications
Brand Name :
Herrman
Model Number :
Simplex and Duplex
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 sets per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Line speed :
150m/min
Aramid cops :
10
Color :
Customerized
Motor :
Siemens
Take up :
PN400 ~ PN630
Pay off :
PN235 PN400
Description

Simplex And Duplex Cable Fiber Optic Cable Production Line Indoor Cable

1. Application

The line is mainly used to produce 2 core indoor optical cable , including； Simplex cable , Duplex cable, FTTH cable and so on.

The line is mainly used to produce 2 core indoor optical cable and FTTH cable, Include: simplex cable, Duplex cable and FTTH cable.

2. Technical Specification

Line speed 150m/min
Operation speed

120m/min simplex cable

80m/min (2.0*3.0mm cable)
Cable size

2.0mm,3.0mm

2.0*3.0mm,2.0*5.0mm
Size of optical fiber pay off reel PN235 PN400
Size of take up reel PN400~PN630
Aramid cops 10
Aramid pay off tension 0.5N-3N±0.05N(adjustable)

3. Line configuration

3.1 PN800 wire pay-off and dancer

3.2 Tight-fiber and optical fiber pay-off frame

3.3 FRP or thin wire pay-off

3.4 Pre-heating device

3.5 10 Cops aramid pay-off

3.6 SJ45×25 extruder and one head

(With feed, compound dryer device and master batch)

3.7 SJ20 extruder for strip

3.8 4m hot water trough and water tank

3.9 12m cooling water trough and refrigerating system

3.10 Blow dryer

3.11 Diameter control system

3.12 Φ500 single wheel capstan

3.13 Accumulator type tension controller

3.14 Swaying beam tension dancer

3.15 PN400-PN630 traversing take-up

3.16 Electric control system

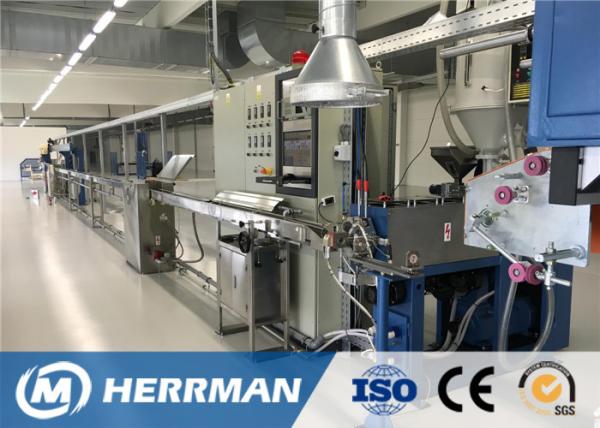

4. Picture for reference

Simplex And Duplex Cable Fiber Optic Cable Production Line Indoor Cable
