Specifications
Brand Name :
Herrman
Model Number :
SZ
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1 set per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Structure speed :
100m/min
Sz strand head speed :
Max. 2000rpm
Binding head speed :
Max. 4000rpm
Binding pitch :
15 - 50mm
Stranding pitch :
50 - 200mm
Application :
Optical cable
Description

SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable

1. Application

The machine is mainly used for stranding optical fiber cable.

The use of fiber-optic cable is continuously increasing. To respond to the various technology requirement, we have developed a wide range production lines. The line is used for SZ stranding of loose tube elements 2-4.5mm

2. Technical Specification

Loose tube dia./number of tube 1.5-6.0mm/12
Structure speed 100m/min
Cable making speed(binding pitch=25mm)(stranding pitch=65) 90m/min
SZ stranding angle ±4~±18
SZ stranding head speed(max) 2000rpm
Binding head speed max. 4000rpm
Binding pitch 15-50mm
Stranding pitch 50-200mm
Fiber loose tube pay off reel size PN630-PN800
Accuracy of the counter 0.2%

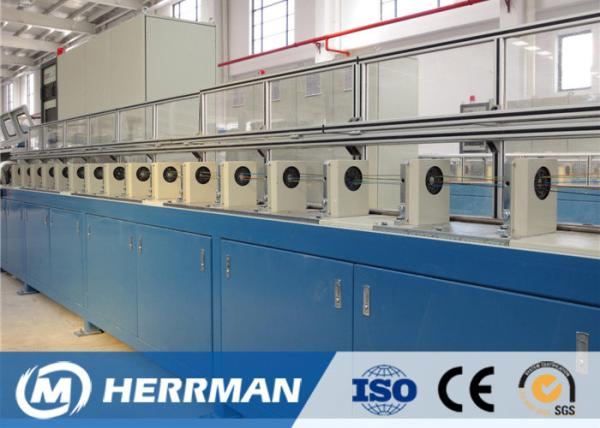

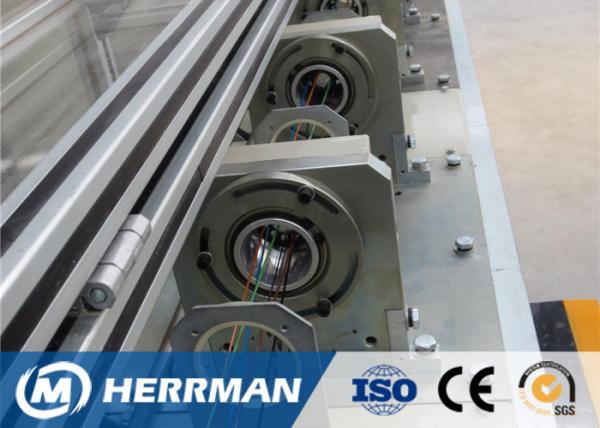

3. Pictures for reference

SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable
