Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Specifications
Brand Name :
Herrman
Model Number :
HM05 , HM06 , HM07
Certification :
ISO , SGS , CE , CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50 sets per month
Delivery Time :
within four month after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Application :
Optical fiber
Optical fiber reel size(max.) :
25km/50km reel weight 10kg
Color :
Customerized
Motor :
Siemens
Bearing :
NSK
Usage :
Coloring and Rewinding
Description

Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber

1. Application

The machine is used for Optical fiber coloring and rewinding.

The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.

2. Technical Specification

Type HM05 HM06 HM07
Coloring speed 2000m/min(nitrogen gas) 2500m/min(nitrogen gas) 3000m/min(nitrogen gas)
Rewinding speed ≤1800m/min ≤2200m/min ≤2600m/min
Pay off and take up tension 0.3N~1.2N±0.05N 0.3N~1.2N±0.05N 0.4N~1.2N±0.05N
Traversing pitch 0.1~1.0mm±0.01mm 0.1~1.0mm±0.01mm 0.1~1.0mm±0.01mm
Extra attenuation after coloring ≤0.02dB/Km(SM,1500Nm) ≤0.02dB/Km(SM,1500Nm) ≤0.02dB/Km(SM,1500Nm)
Optical fiber reel size(max.) 25km/50km reel weight 10kg 25km/50km reel weight 10kg 25km/50km reel weight 10kg

3. Configuration of line

3.1 Movable optical fiber pay-off

3.2 Direction control

3.3 Fiber coloring and material supply system

3.4 UV curing oven

3.5 Capstan and counter unit

3.6 Take-up and traversing unit

3.7 Operation station

3.8 Release static system

3.9 Electric control system and software

3.10 Air fan

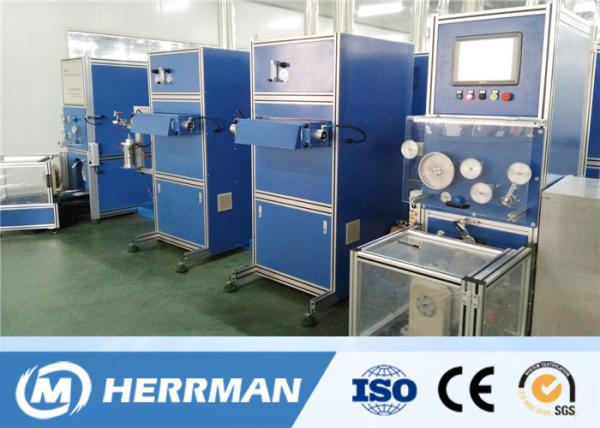

4. Picture for reference
