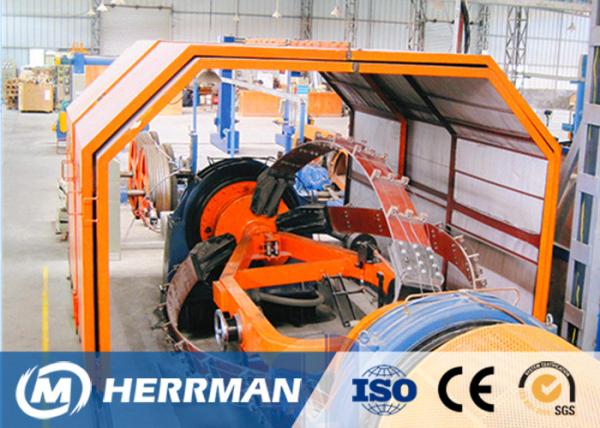

High Speed Tubular Strander , Fiber Optic Cable Machine 2.0mm～5.0mm Wire Diameter
High Speed Tubular Strander , Fiber Optic Cable Machine 2.0mm～5.0mm Wire Diameter
High Speed Tubular Strander , Fiber Optic Cable Machine 2.0mm～5.0mm Wire Diameter
High Speed Tubular Strander , Fiber Optic Cable Machine 2.0mm～5.0mm Wire Diameter
Specifications
Brand Name :
Herrman
Model Number :
400, 500, 630, 800
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SET PER MONTH
Delivery Time :
86 DAYS
Packaging Details :
EXPORT PACKING
Rotating Speed :
1200rpm
Application :
Fiber Optic Cables and OPGW Cable
Product Name :
High Speed Tubular Strander for Fiber Optic Cables and OPGW Cable
Wire Diameter :
2.0mm～5.0mm
Line speed :
90m/min
Max stranding OD :
45mm
Description

High Speed Tubular Strander for Fiber Optic Cables and OPGW Cable

Application

Specific product solutions include round and sectored stranded conductors including ACSR, AAC and AAAC constructions.

This machine is further used in conjunction with Bow Cabler in reverse concentric-lay Cabling, EM Armouring, and OPGW Stranding.

Available in 6,12,18 and 24 bay configurations.

Electronic lay, with programmable lay lengths.

A series safety cover with electrical interlocks.

Large brake for high-speed stopping.

Wire/strand break detector for each payoff

Pneumatic pintle equipped with safety locking system

Automatic bearing lubrication unit for rotating

Wire break detection system detects broken wires along the length of the barrel and before the closing die.


Main Technical Data:

Bobbin size(mm)Max. rotation speed (rpm)Wire dia. (mm)
6B12B18B24BAluminumCopperSteel
2001200900 1.0~2.50.2~1.50.2~0.8
315900800 1.0~2.50.5~1.80.3~1.0
400900800550 1.0~2.51.4~4.00.6~3.0
5008006004503501.3~5.01.8~5.01.3~3.5
5607005004003001.3~5.01.8~5.01.3~3.5
6307005003302601.3~5.02.0~6.01.3~3.5
710400300 1.3~5.02.0~6.01.3~3.5
760350 1.3~5.02.0~6.01.3~3.5



Machine Drawing
