Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
Specifications
Brand Name :
Herrman
Model Number :
JLK630
Certification :
ISO9001:2015, CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
15 sets per month
Delivery Time :
70 working days
Packaging Details :
Seaworthy packing suitable for export
Name :
Disk type stranding machine
Function :
Wire stranding
Copper wire dia. :
Φ1.0～Φ2.0mm
Taping pitch :
Step-less
Max. rotating speed of 24B stranding cage :
80rpm
Motor power for stranding cage :
75KW(AC)
Capstan motor power :
15kW (AC)
Taping motor power :
15kW (AC)
Max. pulling force :
2.5T
Motor Brand :
SIEMENS
Bearing :
NSK
HS code :
847940
Warranty :
12 months
Description

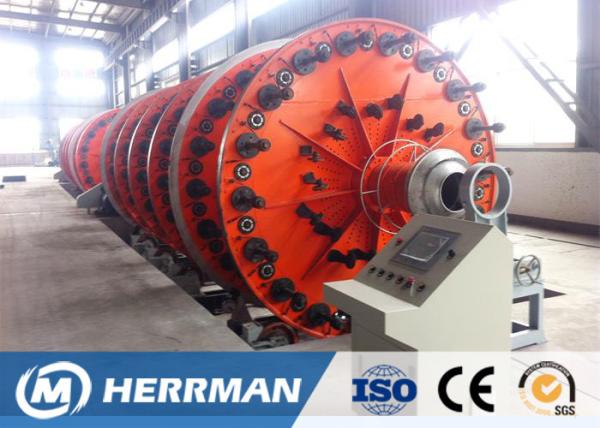

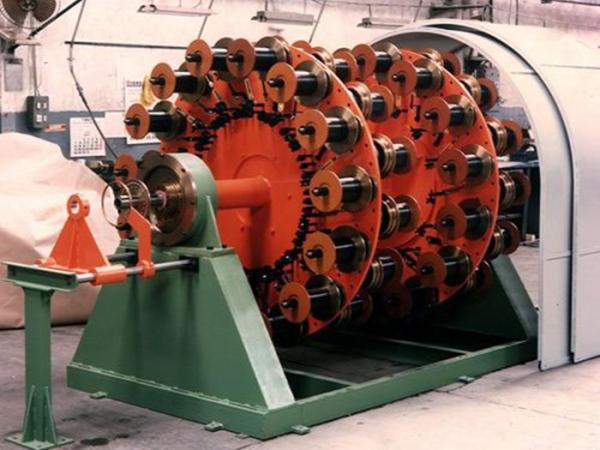

Disk type stranding machine wire stranding machine cable strander

Description

Disk type stranding machine is used for steel wire armoring and copper wire screening.

Main parts

Φ2500 Portal type pay-off

# type guiding stand

24B stranding cage

Wire assembly die

Non-metallic taping machine

Mechanical meter counter

2T Caterpillar

Φ2500 portal type TU with traversing

Electric control system

Main Specification

Max. OD of cable Φ80mm
Dia. Of copper wire Φ1.0～Φ2.0mm
Max. rotating speed of 24B stranding cage 80r/min
Screening pitch 100～1500mm
Max. rotating speed of non-metallic taping head 800r/min
Taping pitch step-less
Max. pulling force 2.5T
Linear speed 30m/min
Motor power for stranding cage 75kW (AC)
Taping motor power 15kW (AC)
Capstan motor power 15kW (AC)

Drawing for reference

Disk Type Cable Stranding Machine 75KW AC Motor Power 100～1500mm Screening Pitch
