400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine
400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine
Specifications
Brand Name :
Herrman
Model Number :
630, 500, 400
Certification :
CQC, CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/A, OA, D/P
Supply Ability :
35 Sets Per Year
Delivery Time :
120~150 days
Packaging Details :
Plastic Films
Rotating Speed :
167r/min
Bobbin Size :
400~630mm
Single Wire Diameter :
1.0~5.0mm
Motor Power :
55KW
Usage :
Steel Wire Armouring
Final Product :
Power Cable
Motor :
SIEMENS
Driver :
SIEMENS G120
Description

400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine

1. Application

This machine is mainly used for steel wire armouring.

2. Main Technical Specification

Type JL-400 JL-500 JL-630
Single conductor dia. Cu 1.0~5.0mm 1.0~5.0mm 1.0~5.0mm
Al 1.6~5.0mm 1.0~6.0mm 1.8~6.0mm
Insulated Wire 2.0~6.0mm 2.0~8.0mm 4.2~10mm
Max Out Dia. 35mm 45mm 50mm
Stranding Pitch 6B 43~754mm 59.20~1010mm 200~950mm
12B 43~754mm 59.2~1010mm 200~950mm
18B 556~980mm 67.4~1149mm 200~950mm
Stranding Speed 6B 70~167r/min 51~121r/min 85r/min
12B 70~167r/min 51~121r/min 85r/min
18B 54~128r/min 45~107r/min 85r/min
Line speed 52.7m/min 51.6m/min 60m/min
Pay off bobbin PN400/PND400 PN500/PND500 PN630/PND630
Central pay off PN1000~PN2500 PN1000~PN2500 PN1600
Take up bobbin PN1000~PN2500 PN1000~PN2500 PN1000~PN2500

3. Main Components

3.1 Ф1600 pintle type pay-off stand 1 set

3.2 Ф630 manual pay-off stand 1 set

3.3 # shape wire guiding stand 1 set

3.4 6B, 12B, 18B, 24B stranding cage each 1 set

3.5 Wire assembly die seat 4 sets

3.6 Non-metal taping device 1 set

3.7 Electric & mechanical meter counter 1 set

3.8 Φ2000 dual capstan device 1 set

3.9 Φ3150 portal type take-up with traversing stand 1 set

3.10 Mechanism transmission system 1 set

3.11Electric control system 1 set

3.12 Safety fence 1 set

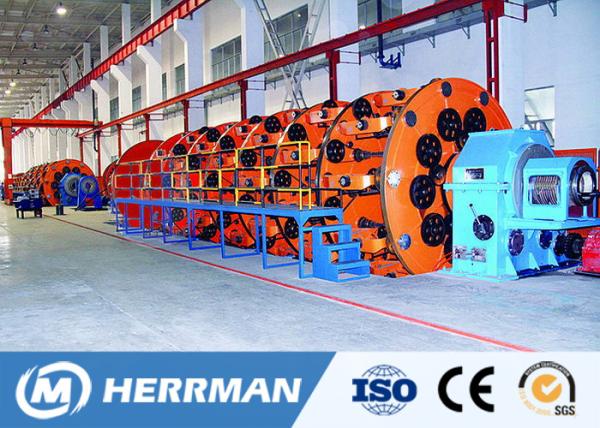

4. Photo

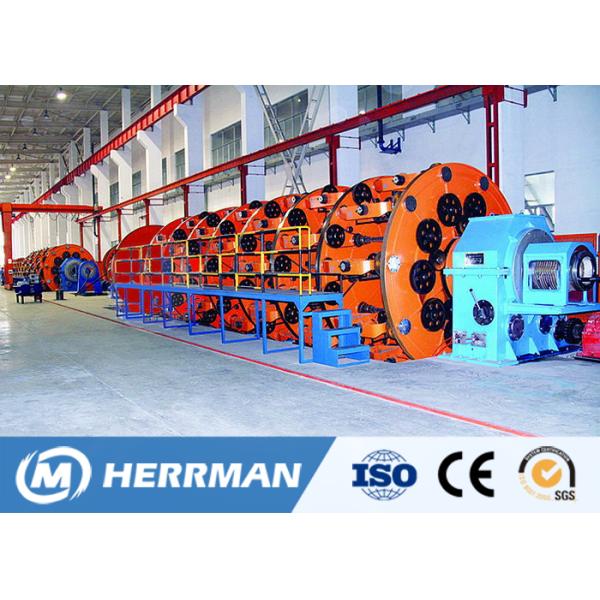

400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine
