Wire and Cable Machine 500r/min Rotating Speed Tubular Strander
Wire and Cable Machine 500r/min Rotating Speed Tubular Strander
Specifications
Brand Name :
Herrman
Model Number :
200~630
Certification :
ISO, SGS, CQC, CE
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, OA, D/P, T/T
Supply Ability :
55 Sets Per Year
Delivery Time :
90~120 days
Packaging Details :
Plastic Film winding
Usage :
Control Cable Stranding
Final Product :
Control Cable
Motor Power :
11KW
Bobbin Size :
Max. 630mm
Single Wire Diameter :
1.4~5.0mm
Rotating Speed :
Max. 1200r/min
Description

Wire and Cable Machine 500r/min Rotating Speed Tubular Strander

1. Usage

The Line is used for stranding the each kinds of cable with back twist.

2. Main Characteristic

- Wire-breaking and urgency stops function.

- The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.

- The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

- Bobbin is clamped by disc springs and released by pneumatic device.

3. Main Technical Data

Type JLG-200/1+6 JLG-400/1+6 JLG-500/1+6 JLG-630/1+6
JLG-200/1+12 JLG-400/1+12 JLG-500/1+12 JLG-630/1+12
JLG-200/1+6+12 JLG-400/1+6+12 JLG-500/1+6+12 JLG-630/1+6+12

Single conductor dia.

(mm)

 0.2~1.5(Cu) 1.0~2.5(Al)
0.2~0.8(Steel)		 1.0~3.5(Cu) 1.5~4.0(Al)
0.6~3.0(Steel)		 1.3~5.0(Cu) 1.8~5.0(Al)
1.7~3.5(Steel)		 1.3~5.0(Cu) 1.8~5.0(Al)
1.7~3.5(Steel)
Max. rotating speed (r/min) 1200 900 720 500
Main motor (KW) 11 22 37 45
Bobbin in cage PN200 PN400 PN500 PN630

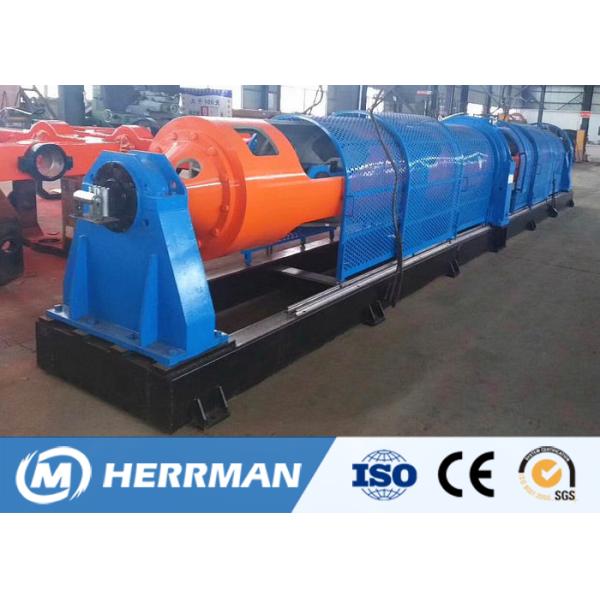

4. Photo

Wire and Cable Machine 500r/min Rotating Speed Tubular Strander
