Specifications
Brand Name :
Herrman
Model Number :
200, 400, 500, 630
Certification :
CQC, CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
D/P, T/T, L/C, D/A, OA
Supply Ability :
60 Sets Per Year
Delivery Time :
90 days
Packaging Details :
Plastic Film
Usage :
Cable Stranding
Final Product :
Power Cable
Single Wire Diameter :
0.2~5.0mm
Rotating Speed :
500~1200r/min
Motor Power :
11~45KW
Bobbin Size :
200~630mm
Description

Cable Machine 45KW Motor Stranding Machine Big Bearing Support Tubular Stranding Machine

1. Application

The machine is used for stranding the copper wires, aluminium wires, steel wires and control cable.

2. Main Feature

- The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

- Bobbin is clamped by disc springs and released by pneumatic device..

- Wire-break and emergent stops provided for all the line

- The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.

3. Main Technical Specification

Type JLG-200/1+6 JLG-400/1+6 JLG-500/1+6 JLG-630/1+6
JLG-200/1+12 JLG-400/1+12 JLG-500/1+12 JLG-630/1+12
JLG-200/1+6+12 JLG-400/1+6+12 JLG-500/1+6+12 JLG-630/1+6+12
Single conductor dia. 0.2~1.5mm(Cu) 1.0~2.5mm(Al)
0.2~0.8mm(Steel)
1.0~3.5mm(Cu) 1.5~4.0mm(Al)
0.6~3.0mm(Steel)
1.3~5.0mm(Cu) 1.8~5.0mm(Al)
1.7~3.5mm(Steel)
1.3~5.0mm(Cu) 1.8~5.0mm(Al)
1.7~3.5mm(Steel)
Max. rotating speed 1200r/min 900r/min 720r/min 500r/min
Main motor(AC) 11KW 22KW 37KW 45KW
Bobbin in cage PN200 PN400 PN500 PN630

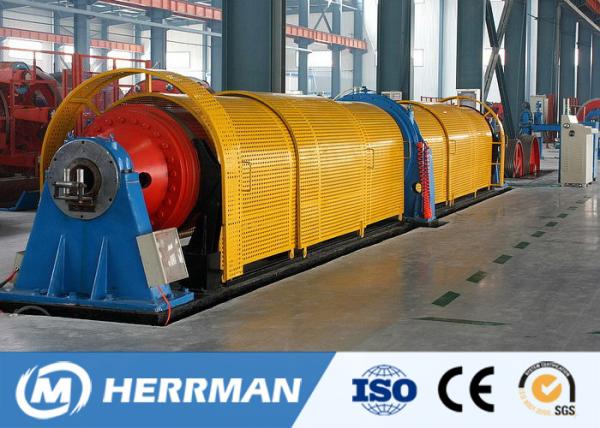

4. Photo

Cable Machine 45KW Motor Stranding Machine Big Bearing Support Tubular Stranding Machine
