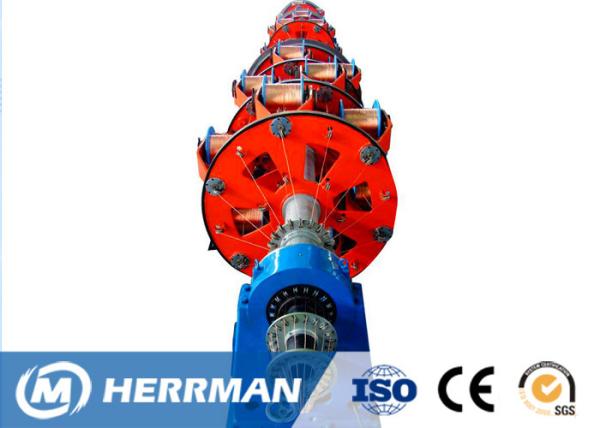

Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
Specifications
Brand Name :
Herrman
Model Number :
400, 500, 630, 800
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SETS PER MONTH
Delivery Time :
126 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
Planetary Type Cable Stranding Machine for OPGW and Fibre Optic Submarine Cable
Usage :
stranding Al-clad steel cable, OPGW and Fibre Optic Submarine Cable, steel cored Al stranded wire, and bare Cu and Al wire.
Wire Diameter :
1.0mm – 5.0mm
Back Twist :
100% back-twist
Drive Method :
Independent Drive
Bobbin Tension :
Uniform pay-off wire tension.
Description

Planetary Type Cable Stranding Machine for OPGW and Fibre Optic Submarine Cable

Application:

This machine is mainly used in stranding Al-clad steel cable, OPGW and Fibre Optic Submarine Cable, steel cored Al stranded wire, and bare Cu and Al wire.

Specification:

Able to produce cables or strands in one or multi-pass

The rotating structure is supported on bearings for reels up to Ø 800 mm; the rollers is supported on GESADUR rollers

Machine able to work in twist, total back twist or variable back twist

Reels loading/unloading from the top or side loaders

Mechanical pintles equipped with safety locking system

Wire/strand break detector for each payoff

Tension control for each and every bobbin with individual load cells and controlled bobbin drive or bobbin brake control systems

Main Technical Data

Bobbin
Size
(mm)		 Max Rotation speed(m/min) Wire Diameter(mm)

Solid Conductor

(AAC/ACSR)

 Multi wire
conductor		 Al-Clad
Steel wire		 Optical
fiber cell		 Steel
rope
6B 8B 12B 16B 18B 24B Copper Al/Alloy
400 130 125 120 105 90 1.0-5.0 1.5-5.0 1.2-5.0
500 110 100 100 90 76 1.0-5.0 1.5-5.0 1.2-5.0
630 90 85 80 75 72 63 1.2-5.0 1.5-5.0 1.2-5.0 1.2-5.0 1.5-5.0
800 60 50 45 2.0-15

Machine Drawing

Planetary Type Cable Stranding Machine For OPGW And Fibre Optic Submarine Cable
