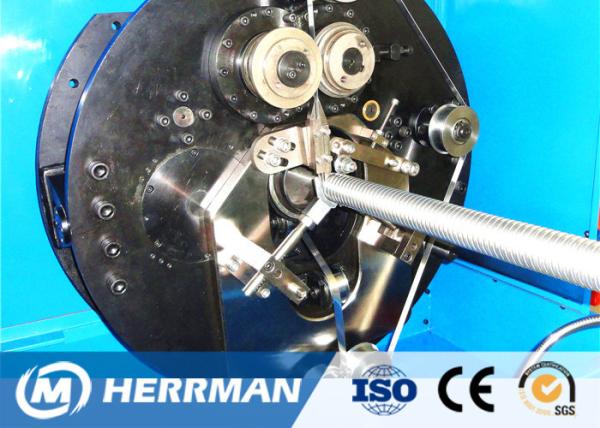

1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
1200rpm Interlock Cable Armouring Machine For Flat Submersible Oil Pump Cable
Specifications
Brand Name :
Herrman
Model Number :
30, 50, 100, 130
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T and Negotiation
Supply Ability :
10 SET PER MONTH
Delivery Time :
32 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
Automatic Interlock Cable Armouring Machine With High Speed
Max rotating speed :
1200rpm
Tape width :
9.5mm、12.7mm、19mm、25.4mm
Tape thickness :
0.5～1.0mm
Tape Material :
Al Alloy tape, Galvanized steel tape, Stainless steel tape, Copper tape
Application :
round power cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable
Description

Automatic Interlock Cable Armouring Machine With High Speed

Application

This machine is mainly use for interlocking the round cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable .

Main Technical Specification:

Cable diameter before armoring Φ5～Φ120mm

Max.bore diameter for passing cable Φ130mm

Max rotating speed of main machine 800r/min

Armoring pitch 6.3～16.9mm

Max pulling force 1250kg

Max line speed 13.6m/min

Tape pay off coil size: (OD x ID x WIDTH) Φ900mm×Φ400mm×203mm

Tape thickness 0.5～1.0mm

Tape width 9.5mm,12.7mm,19mm,25.4mm

Tape material Al Alloy, Galvanized steel tape,

stainless steel tape

Armoring type S type

Main motor power 30KW(AC motor with inverter, Siemens)

Capstan motor 1.5kw (AC servo motor)

Main Technical Data

Type

Max rotating speed

(rpm)

Diameter

(mm)

 Tape Material

Tape size

(mm)

Width x Thickness

Motor

(kw)

Capstan motor

(kw)

Central Height

(mm)

 Usage
50 1200 6-45

Al Alloy tape

Galvanized steel tape

Stainless steel tape

Copper tape

 (9.5,12.7)x(0.5,0.65) 22 1.0 1000 interlocking the round cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable
100 800 10-95

(9.5,12.7)

(19,25.4)

x(0.5,0.65)

 22 1.5 1000
130 800 10-125 22 1.5 1000

Machine Drawing
