Specifications
Brand Name :
Herrman
Model Number :
2500, 3150, 3500
Certification :
ISO9001：2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P,By Negotiation
Supply Ability :
10 sets per month
Delivery Time :
120 working days
Packaging Details :
by ply-wooden case suitable for export
Name :
Drum Twister Type armoring machine
Application :
Cable Armoring
Type :
Drum type
Max.cabling OD（JPD-2500） :
Φ20~Φ120
Cabling pitch :
Adjustable and step-less
Nos. of steel wire :
96pcs
Max. standard pulling force :
3000
Main motor power (JPD-2500) :
22KW
Motor :
SIEMENS
Bearing :
NSK
HS code :
8479400000
Color :
Color plate provided by customer
Warranty :
1 year
Description

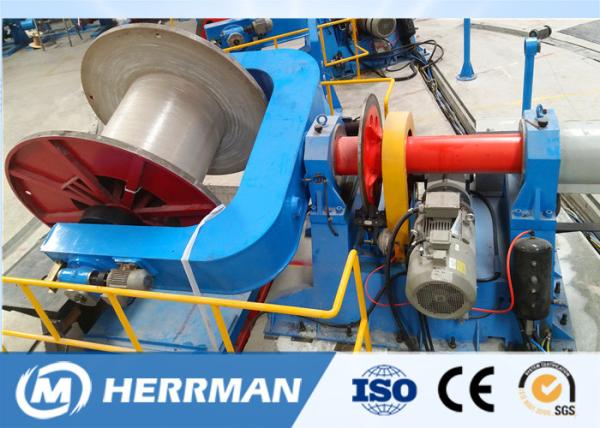

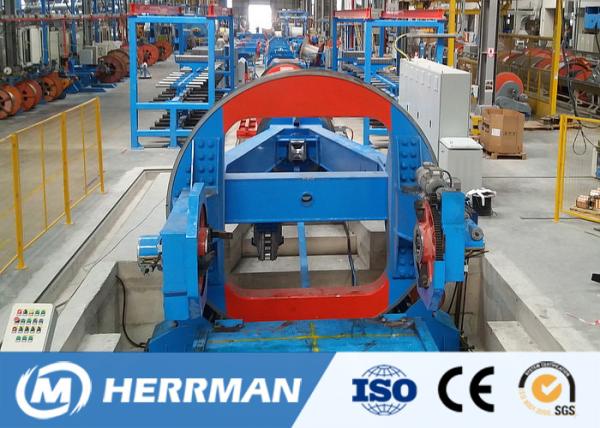

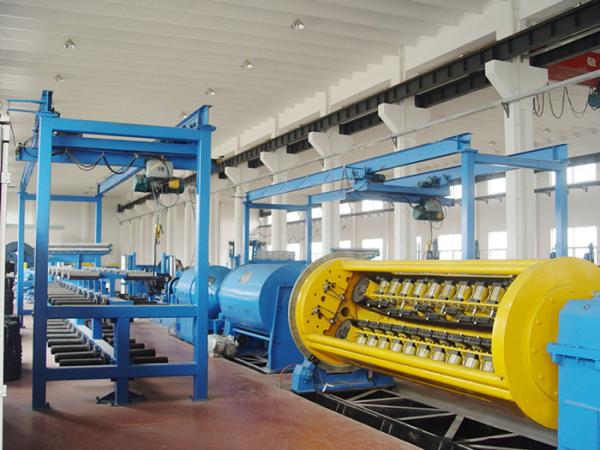

Drum Twister Type armoring machine Drum twister for HV cable

1.Description

Drum Twister Type armoring machine is used for laying-up of large section, long length power cables. The line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. The line is used for steel wires armoring of power cables, too.

2.Main Specification

Main Technical Data:
Model JPD-2500 JPD-3150 JPD-3600
Max.cabling OD Φ20~Φ120 Φ25~Φ130 Φ25~Φ130
Max.rotation speed of T/U & P/O (RPM) 50 30 30
Cabling pitch can be adjusted, step-less
Max.Linear speed (m/min) 50 40 40
Max.pulling force Standard 3000
Armoring with 96 steel wires 5000
Central P/O reel Φ2500 Φ3150 Φ3600
P/O reel Φ1600 Φ2000 Φ2500
T/U reel Φ2500 Φ3150 Φ3600
Armoring steel wire reel Φ500 Φ630 Φ630
Main motor power (KW) 45 55 75
Central P/O motor power (KW) 22 15 18.5

3.Main Parts

1 Φ2000 rotating pay-off stand(with lifting platform)

2 Pay-off stand of filling yearns

3 Guiding rollers stand

4 Three row cables assembly die set

5 Taping head (non-metallic tapes)

6 4T Rotating belt caterpillar (having meter counter)

7 Φ3150 rotating take-up stand with traverse(with lifting platform)

8 Electric transmission and control system

9 Pneumatic hydraulic system

10 Safe fences

​11 2000 central pay-off

12 Steel wire pay-off syste,

4.Drawing for reference
