Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
Specifications
Brand Name :
Herrman
Model Number :
350, 400
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 Sets Per Month
Delivery Time :
122 Working Days
Packaging Details :
Export Packing
Dia. of extrusion wheel :
350mm, 400mm
Inlet rod diameter :
9.5mm
Alu tube O.D. :
65mm - 165mm
Al Tube Thickness :
2mm - 4mm
Average produce efficiency :
250～500 kg / h
Extrusion wheel Rotation :
0 - 15 rpm
Description

The Aluminum Conklad And Conform Extrusion Machine For OPGW and ACS Wire

Application

The machine is used for seamless Al cladding for MV, HV or EHV power cable. For example, 350×2 Al tube cladding continuous extrusion line is mainly used for extrudingΦ9.5 Aluminum rod into Aluminum tube of or below Φ160mm and coating on the surface of cable, then through the corrugation unit to corrugate the aluminum tube as protection metal sheath for cable.

Main Technical Parameter

Description Model no.
Nominal Dia. of extrusion wheel(mm) 350 400
Inlet rod diameter(mm) Φ9.5 Φ9.5
Alu tube O.D.(mm) Φ65～Φ150 Φ70～Φ165
Al Tube Thickness(mm) 2～4 2～4
Corrugating pitch(mm) 10~50 10~50
Corrugating depth(mm) 2~8 2~8
Extrusion wheel Rotation(rpm) 0-15 0-15
Range of speed(m/min) 0～8 1.2-6
Average produce efficiency(kg/h) 250～500 250-500
Product line power(KW) 560 620

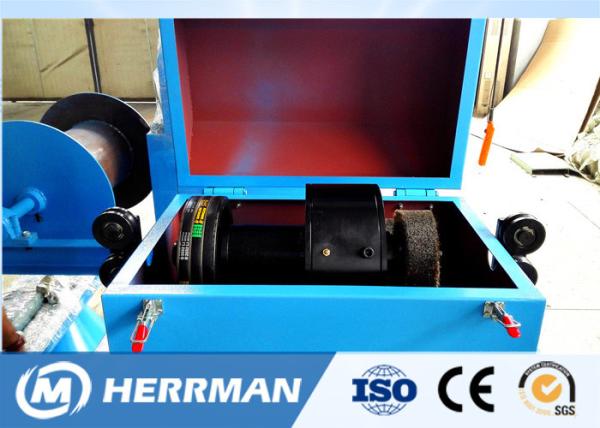

Machine Photo

Aluminum Conklad And Conform Extrusion Armouring Machines For OPGW / ACS Wire
