Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Oil Pump Cable Interlock Cable Production Machines , Al Alloy Cable Interlock Machine
Specifications
Brand Name :
Herrman
Model Number :
LSKZ-130
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
70 working days
Packaging Details :
By ply-wooden case suitable for export
Name :
Interlock armoring machine
Application :
Armoring
Type :
50;100;130
Tape width :
9.5, 12.7, 19, 25.4
Cable diameter :
5~130mm
Motor :
22KW
Capstan motor (130) :
1.5KW
Central Height :
1000mm
Bearing :
NSK
HS CODE :
8479400000
Color :
Color plate provided by customer
Warranty :
1 year
Description

Interlock armoring machine for Al alloy cable interlocking equipment

Description

Interlock armoring machine is mainly use for interlocking the round cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable .

Main Specification

Type

Max rotating speed

(rpm)

Diameter

(mm)

 Tape Material

Tape size

(mm)

Width x Thickness

Motor

(kw)

Capstan motor

(kw)

Central Height

(mm)

 Usage
50 1200 6-45

Al Alloy tape

Galvanized steel tape

Stainless steel tape

Copper tape

 (9.5,12.7)x(0.5,0.65) 22 1.0 1000 interlocking the round cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable
100 800 10-95

(9.5,12.7)

(19,25.4)

x(0.5,0.65)

 22 1.5 1000
130 800 10-125 22 1.5 1000

Main parts

1 Φ3500 portal type pay off

2 Coiler stand

3 Interlock armoring main machine

4 1250kg flat belt caterpillar

5 Φ3500 portal type take up

6 Electrical control system

7 Tape rewinding machine

8 Special tool

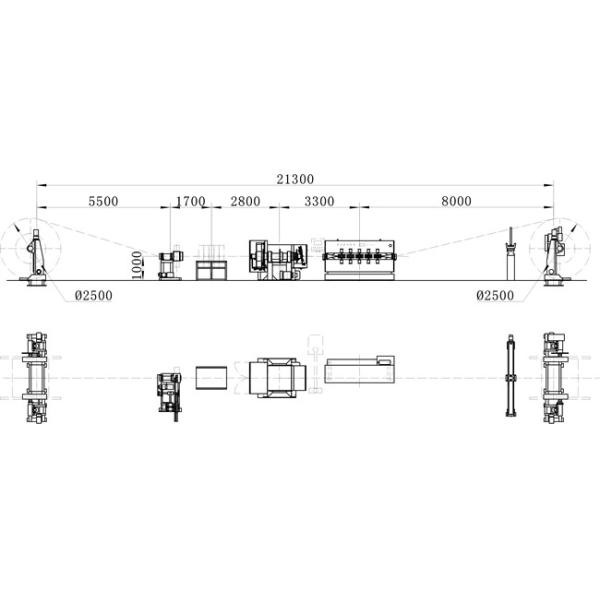

Drawing for reference
