Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Professional MV LV Cable Lay Up Machine Cage Type Stranding Line Siemens Motor
Specifications
Brand Name :
Herrman
Model Number :
1000, 1250, 1600
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, T/T，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
125 working days
Packaging Details :
Seaworthy packing suitable for export
Product Name :
Cage type Laying Up Machine
Usage :
Cable laying up
Line speed( JC-1600/1+1+3) :
4.9~35.5 m/min
Max.speed :
60rpm
Motor (JC-1600/1+1+3)Main :
55kw
Max. cabling OD :
100
Diameter of single wire(mm)(JC-1600/1+1+3) :
10~35
Motor :
SIEMENS
Bearing :
NSK
Color :
Color plate provided by customer
Warranty :
1 year
Description

Planetary lay up machine cage type stranding line for cabling for MV LV cable

Description

Cage type Laying Up Machine is mainly used for Lay up, taping and armoring the PVC, PE, XLPE, RUBBER insulated power cable ,rubber cable, special cable etc. The insulate wire core can be round or sector.

Type

630/1+6, 1000/1+6, 1000/1+3, 1000/1+1+3, 1250/1+3, 1250/1+1+3, 1250/1+4, 1250/1+6, 1600/1+3, 1600/1+1+3

Main Specification

Type JC-1600/1+1+3 JC-1250/1+1+3 JC-1000/1+6 JC-1250/1+4
Diameter of single wire(mm) 10~35 10~25 10~20 10~25
Max diameter for cabling(mm) 100 75 63 75
Max Speed(rmp) 40 50 60 50
Stranding pitch(mm) 415~7100 151~2652 11`0~1910 151~2652
Taping speed(rmp) 160~357 125~278 125~278 125~278
Taping Pitch(mm) 13.7~221 12.4~203 12.4~203 12.4~203
Line speed(m/min) 4.9~35.5 3.5~25.4 3.5~25.4 3.5~25.4
Main motor(kw) 55 37 30 45

Main component

Φ1250/1+1+3 stranding cage

Double forming stand

Normal taping

40 steel armoring head

Mechanical meter counter

1600kg Flat-belt type capstan

Φ2500 End-shaft winding traversing stand

Mechanical transmission

Electrical control system

Safety protection shield

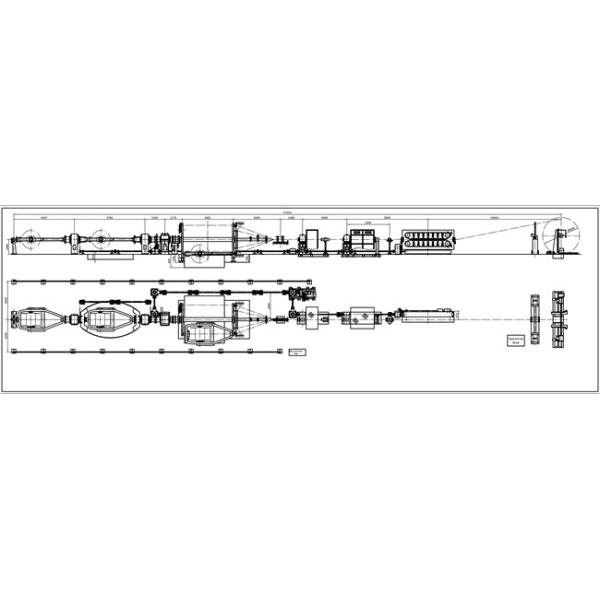

Drawing for reference
