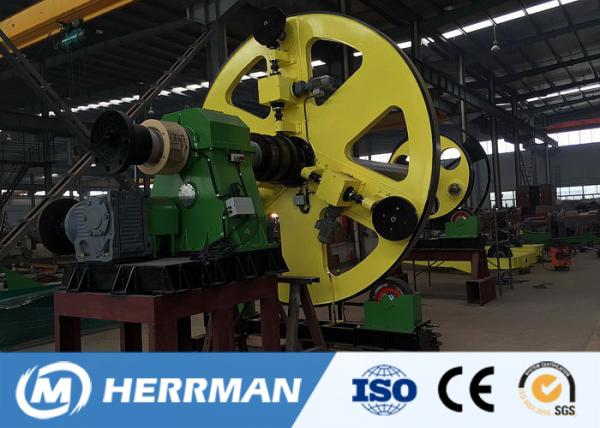

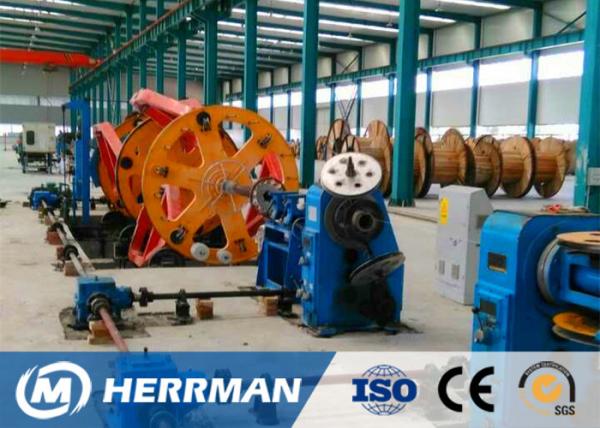

High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
Specifications
Brand Name :
Herrman
Model Number :
1000, 1250, 1600
Certification :
ISO9001:2015,CE ,SGS
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, T/T，By Negotiation
Supply Ability :
15 sets per month
Delivery Time :
90 working days
Packaging Details :
By seaworthy packing suitable for export
Name :
Cage type Laying Up Machine
Usage :
Cable laying up
Max.speed :
60rpm
Max. cabling OD :
100
Diameter of single wire(mm)(JC-1600/1+1+3) :
10~35
Main motor(kw)(JC-1000/1+6) :
30
Motor :
SIEMENS
Bearing :
NSK
HS code :
847940
Color :
Customized
Warranty :
12 months
Description

Cage type Laying Up Machine cradle type lay up machine cage type cabling equipment

Description

Cage type Laying Up Machine is mainly used for Lay up, taping and armoring the PVC, PE, XLPE, RUBBER insulated power cable ,rubber cable, special cable etc. The insulate wire core can be round or sector.

Feature

1. The machine is provided with back-twist, electric pre-twist, bobbin is clamped and released by electromotion.

2. The machine adopt SIEMENS PLC to command and coordinate electric work. The electric control system is advance in technology, easy in operation, and reliable in running.

Main component

Φ1250/1+1+3 stranding cage

Double forming stand

Normal taping

40 steel armoring head

Mechanical meter counter

1600kg Flat-belt type capstan

Φ2500 End-shaft winding traversing stand

Mechanical transmission

Electrical control system

Safety protection shield

Main Specification

Type JC-1600/1+1+3 JC-1250/1+1+3 JC-1000/1+6 JC-1250/1+4
Diameter of single wire(mm) 10~35 10~25 10~20 10~25
Max diameter for cabling(mm) 100 75 63 75
Max Speed(rmp) 40 50 60 50
Stranding pitch(mm) 415~7100 151~2652 11`0~1910 151~2652
Taping speed(rmp) 160~357 125~278 125~278 125~278
Taping Pitch(mm) 13.7~221 12.4~203 12.4~203 12.4~203
Line speed(m/min) 4.9~35.5 3.5~25.4 3.5~25.4 3.5~25.4
Main motor(kw) 55 37 30 45

Drawing for reference

High Speed Cage Type Pvc Wire Manufacturing Machine , Cable Laying Up Machine
