Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Specifications
Brand Name :
Herrman
Model Number :
1600MM - 4500MM
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SETS PER MONTH
Delivery Time :
122 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
Drum Twister Cabling Machine with Caterpiller for Energy Cable and Telephone Cable
Application :
Energy Cable and Telephone Cable
Tape Material :
plastic tapes, aluminum or copper foil tape, or steel tape, polyester tape, non-woven tapes, glass tapes, semiconductor tapes
Shapes :
Round, Straight Sector, Pre-spiralled Sector,
Line Speed :
100m / min
Cable Diameter :
200mm
Description

Drum Twister Cabling Machine with Caterpiller for Energy Cable and Telephone Cable

Application

Drum twister cabling machine is mainly used for twisting large section and long length power cable, making round or sector core stranding process, also can used for armoring steel wire or copper shield, as well as the Energy Cable and Telephone Cable.

Specification

Line components driven by independent motorsWide range of rotating fork type payoff for reels from Ø 1,250 mm to Ø 2,800 mm

Payoffs for armouring/screening process from coils/baskets or reel

Wire tension kept constant from full to empty pay off reel

Motorized pintles for rotating pay off and take up units

Full range of taping heads for plastic, copper, aluminum and steel tapes with different size pads, tape widths and thicknesses

Hydraulic lifting platform and motorized trolley for reel loading/unloading

Main Technical Data

Take Up Reel Size Drum O.W. (mm) Loading capacity(t) Max. rotation speed of drum twister
2000 1500 8 60
2200 1700 10 60
2500 1900 12 50
3150 2300 15 40
3500 2300 25 30
3600 2300 25 30
4000 2400 30 20
4200 2400 30 20

Machine Drawing

Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable

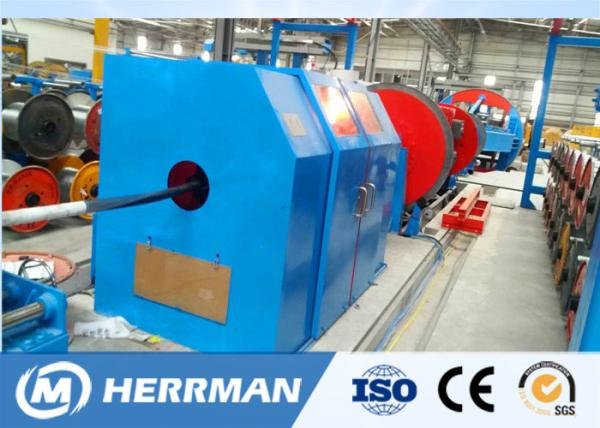

Machine Photo

Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
