Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
Specifications
Brand Name :
Herrman
Model Number :
65, 80, 90, 100, 120, 150
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T and Negotiation
Supply Ability :
1SET PER MONTH
Delivery Time :
70 DAYS
Packaging Details :
EXPORT PACKING
Product Name :
Rubber Continuous Vulcanizing Cable Extrusion Line
Application :
For LV, MV, HV and EHV Cables
Function :
Insulation and Sheathing
Rubber Material :
natural rubber, SBR, CR, NBR, EPR, CPE, CSPE,EPDM,NR,EVA,CM,SC RUBBER,SILICONE RUBBER
Dia. before extruding :
5mm - 90mm
Dia. after extruding :
30mm - 110mm
Description

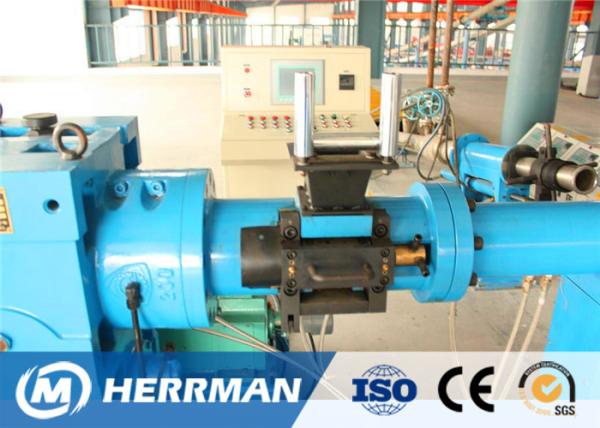

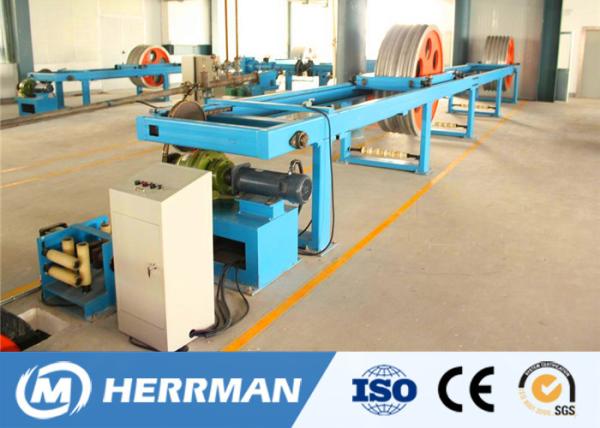

Automatic Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation

Main Feature

This line is a special machine for the purpose of rubber wire and cable’s insulating, sheathing as well as for the continuous vulcanizing. The rubber material include natural rubber, SBR, CR, NBR, EPR, CPE, CSP and so on. The cable can be used in mining, marine etc.

The main emphasis of our product range is placed on the production of cores and sheathing, rubber insulated cores and conductors, as well as CV lines for medium and high voltage cables.

Main Technical Specification

ITEM 65/14 90/16 120/16 150/16 60+65

65+90

90+120

65+120+90

 90+150+120
Dia. before extruding (mm) Φ1.5~Φ4 Φ5~Φ20 Φ12~Φ50 Φ20~Φ8 Φ1.5~Φ10 Φ5~Φ30 Φ15~Φ80 Φ15~Φ80 Φ20~Φ90
Dia. after extruding (mm) Φ15 Φ30 Φ60 Φ90 Φ20 Φ40 Φ90 Φ90 Φ110
Max.extruding speed (m/min) 40 30 30 20 40 30 20 20 20
Max. output (kg/h) 70 150 380 550 60+70 70+150 150+380 70+150+380 150+550+380
Screw material 38CrMnALA
Screw type Dual-screw thread, BM type
Heating area 5 5 6 6 5+5 5+5 5+6 5+5+6 5+6+6
Main motor (DC) 27 55 110 132 27+27 27+55 55+110 27+110+55 55+132+110
length of vulcanizing pipe (m) 60 84 84 84 60 84 84 84 84
P/O reel Φ630 Φ1600 Φ2500 Φ2500 Φ630 Φ2000 Φ2500 Φ2500 Φ2500
T/U reel Φ630 Φ2500 Φ3150 Φ3150 Φ630 Φ2500 Φ3150 Φ3150 Φ3150
Capstan type Φ630 dual-wheel TQDV2000 TQDV2500 TQDV3000 Φ630 dual-wheel TQDV2000 TQDV3000 TQDV3000

Machine Drawing

Rubber Continuous Vulcanizing Cable Extrusion Line For Sheathing And Insulation
