High Speed Triple Layer Concentric Taping Machine Speed Up To 2200RPM

Application for Winding wires such as submersible cable:

Round conductors range: Ø1mm- Ø4mm;

Tape: Mica tape, PTFE tape, BOPP, Mylar tape, Polyimide tape, Polyester Film, Nomex, Kapton etc. tape..

High Speed Triple Layer Concentric Taping Machine Description:

Payoff DIN400-630

High speed concentric taping machine

Dual wheel capstan

Takeup DIN400-630

PLC control system with color touch screen

Advanced function (Optional):

High speed pad type tape or high capacity bobbin type tape

Different Payoff and takeup

Electro magnetic clutch or Hystereisis clutch

Serve motor with serve controller

Remote Diagnostic Facility

Testing equipment such as laser gauge, spark tester etc.

High Speed Triple Layer Concentric Taping Machine Features:

1. Payoff DIN 400-630

2. Horizontal taping machine

PLC control system, operated by touch screen.

Bi-directional for each tape head rotation.

Speed up to 2200RPM.for Pad type tape, 1800RPM for spool type tape.

Special design for tape, pad type or spool type tape both available.

Each taping head driven by individual motor and inverter, ensure constant pre-set tape tension from start to end of the tape spool regardless of its size.

Special design for roller, avoid tape deformation, coat wire close and smooth, ensure product stabilized performance and superior consistency

3. Capstan

4. Takeup DIN 400-630

5. PLC control system with color touch screen

Monitor taping process such as Line speed, batch count, tape tension, taping overlap etc.

Clockwise or anti-clockwise taping rotation

Increase / decrease tape head speed

Wire broken detectors.

Tape broken detectors

Alarm and Recipe system.

Main Technical Data

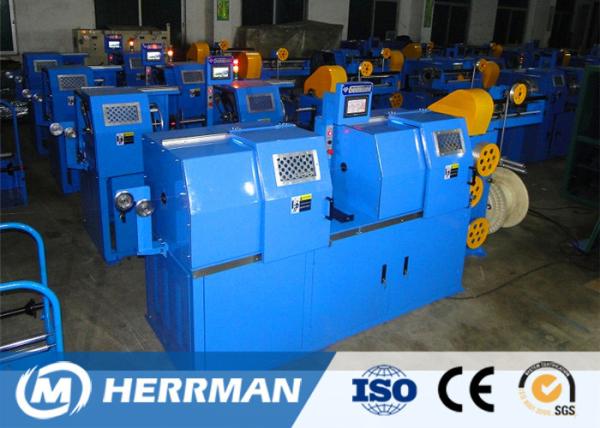

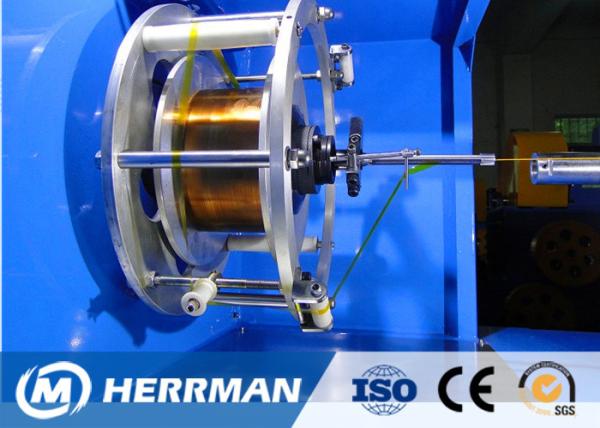

Machine Photo
