Specifications
Brand Name :
Herrman
Model Number :
/
Certification :
ISO9001:2015,CE ,ROSH
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation
Supply Ability :
10 T per week
Delivery Time :
10 working days
Packaging Details :
Packing in cartons suitable for export
Product Name :
Semi-Conductive Tetoron Tape
Application :
Coating
Applicable cable :
Hv Cable
Min. thickness :
0.10mm
Weight :
90+/-10g/m2
Volume resistance :
＜1×10^6
Surface resistance :
＜1000
Elongation :
≥20%
HS Code :
5603931000
Color :
Black
Warranty :
12 months
Description

Semi-Conductive Tetoron Tape for milliken conductor for HV cable

Construction

Nylon fabric with semi-conductive coating on both sides

Main Specification

Property Test method JG-BNLD18 JG-BNLD20
Thickness Test2/ISO9073-2 0.18+/-0.03mm 0.20+/-0.03mm
Weight Test3/ISO9073-1 150+/-25g/m2 175+/-25g/m2
Tensile strength Test10/ISO9073-3 More than 150N/cm ≥230N/cm
Elongation Test10/ISO9073-3 ≥20% ≥20%
Surface resistance Test8/DIN53482 ＜1000 ＜1000
Volume resistance Test9/DIN54345 ＜1×10^6 ＜1×10^6
Shortterm stability Jgtest 5 230degree centigrade 230degree centigrade
Longterm stability Test/IEC 216 145degree centigrade 145degree centigrade

Characteristics

Strong tape with high tensile strength

High resistance to extrusion penetration; high temperature resistance

Proven long-term and short-term stability

Low surface and volume resistance

REACH and RoHS compliant

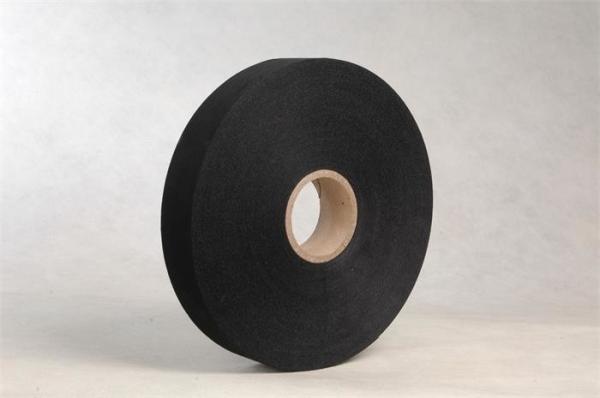

Tape Photo

Hv Cable Accessories Tetoron Semi Conductive Tape For Milliken Conductor
