Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
Specifications
Brand Name :
Herrman
Model Number :
400 , 500 , 630 , 800
Certification :
ISO , CE , CQC , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 Set per month
Delivery Time :
3 months after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Motor :
Siemens OR Customerized
Application :
Solid conductor AAC/ACSR)
Transmission :
Ground shaft and separate motor
Usage :
Stranding , Armoring
Structure :
Planetary Type
Material :
Cu, Steel, Al
Description

Cage type Wire Cable Machine Aluminum Copper Solid conductor AAC ACSR

1. Description:

This machine is used to manufacture AL stranded conductor(AAC,ACSR), copper stranded conductor and stranding insulated wires to cable with back twist along with steel armouring.

2. Type

400/12+18, 400/6+12+18, 400/12+18+24, 400/6+12+18+24
500/12+18, 500/6+12+18, 500/12+18+24, 500/6+12+18+24
630/12+18,630/8+16, 630/6+12+18
800/8+16, 800/12+24

3. Main Technical Data

Type JL-400 JL-500 JL-630
Single conductor dia(mm) Cu 1.0~5.0 1.0~5.0 1.0~5.0
Al 1.6~5.0 1.0~6.0 1.8~6.0
Insulated Wire 2.0~6.0 2.0~8.0 4.2~10
Max Out Dia(mm) 35 45 50
Stranding Pitch(mm) 6B 43~754 59.20~1010 200~950
12B 43~754 59.2~1010 200~950
18B 556~980 67.4~1149 200~950
Stranding Speed(rpm) 6B 70~167 51~121 85
12B 70~167 51~121 85
18B 54~128 45~107 85
Line speed(m/min) 52.7 51.6 60
Pay off reel PN400/PND400 PN500/PND500 PN630/PND630
Central pay off PN1000~PN2500 PN1000~PN2500 PN1600
Take up reel PN1000~PN2500 PN1000~PN2500 PN1000~PN2500


4. Main components:
Pay-off stand, cage, wire die holder, non-metal taping device, meter counter, haul-off device, take up with traverse, transmission system, electrical control system and safety fencing.

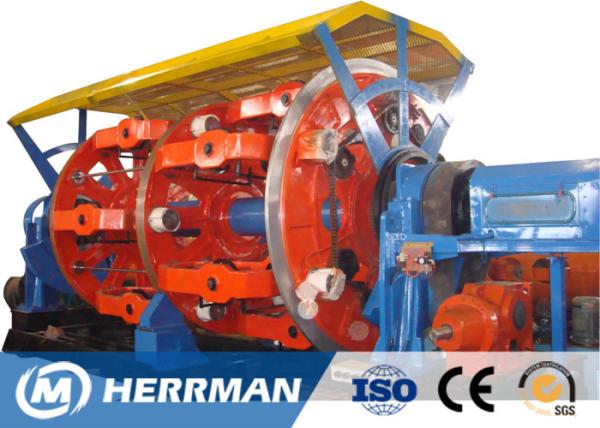

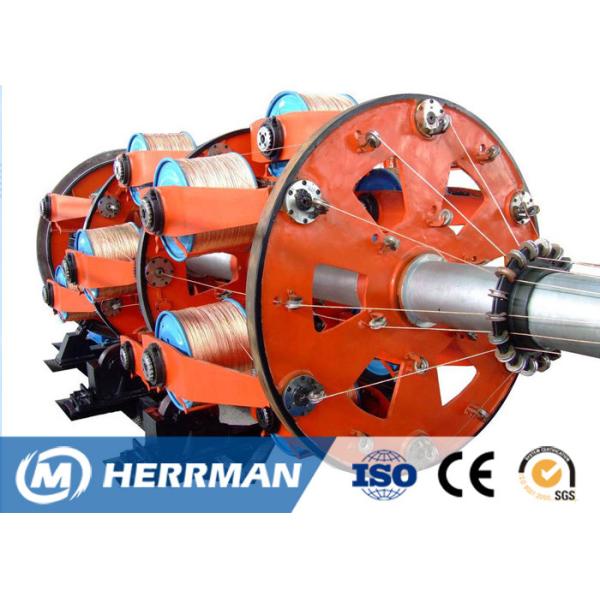

5. Picture for reference

Cage Type Wire Cable Machine Aluminum For Copper Solid Conductor AAC ACSR
